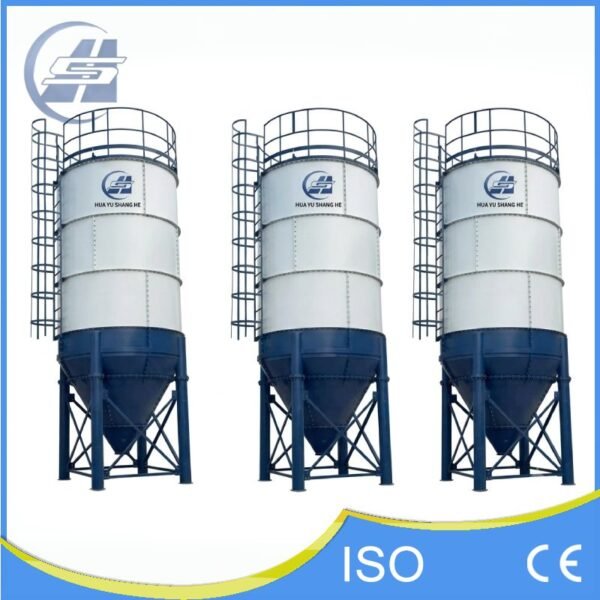

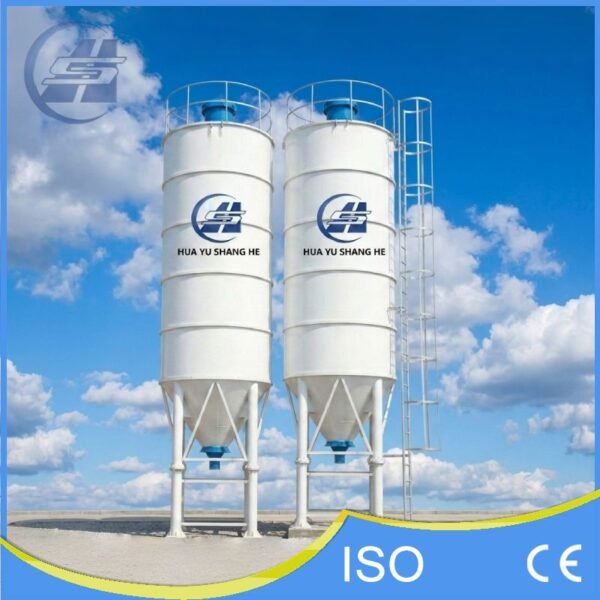

50T-1000T Vertical Bolted Cement Silo Series

Product Introduction

The Vertical Bolted Cement Silo Series is an essential high-capacity storage solution designed to perfectly integrate with standard concrete batching plants. Covering a comprehensive capacity range from 50 to 1000 tons, this series is engineered to safely and efficiently store bulk cement, fly ash, and other powder materials.

Unlike traditional fully-welded silos that are impossible or exorbitantly expensive to ship overseas due to their massive size, our bolted (panelized) design breaks the cylinder down into precise, laser-cut steel panels. These panels can be easily packed into standard shipping containers, drastically reducing your ocean freight costs. Upon arrival at your project site, the panels are quickly assembled using high-strength bolts and premium sealing strips, guaranteeing a 100% weatherproof and durable storage system.

Core Components & Advantages

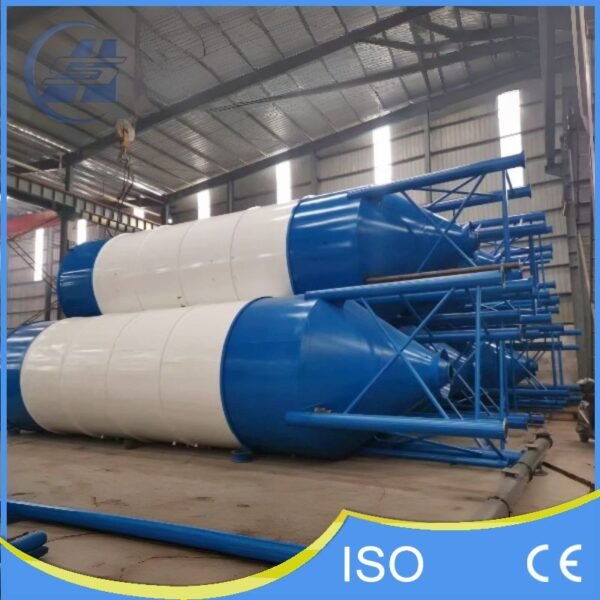

1. Modular Bolted Structure (Container-Friendly):
   Manufactured using advanced laser cutting and CNC bending technology. The modular steel panels fit perfectly into standard 40HQ containers, eliminating the need for expensive bulk cargo shipping and solving the transportation bottleneck for large-scale silos.
2. Exceptional Sealing Performance:
   Each bolted connection is secured with specialized aerospace-grade sealing strips and high-strength bolts. This ensures absolute watertight and airtight integrity, preventing moisture intrusion and protecting your cement from hardening.
3. Comprehensive Safety & Accessory System:
   Equipped with a full suite of standard accessories, including a top-mounted dust collector (to protect the environment during pneumatic loading), a safety relief valve, continuous level indicators (to monitor material volume), and an aeration/arch-breaking system (to ensure smooth discharging).
4. Heavy-Duty Support Legs & Ladder:
   Supported by reinforced, heavy-duty structural steel legs for maximum wind and seismic resistance. It also includes a robust safety ladder and a top guardrail for safe and easy maintenance access.

Typical Applications

With fully customizable capacities, our Bolted Cement Silos are universally applicable for:

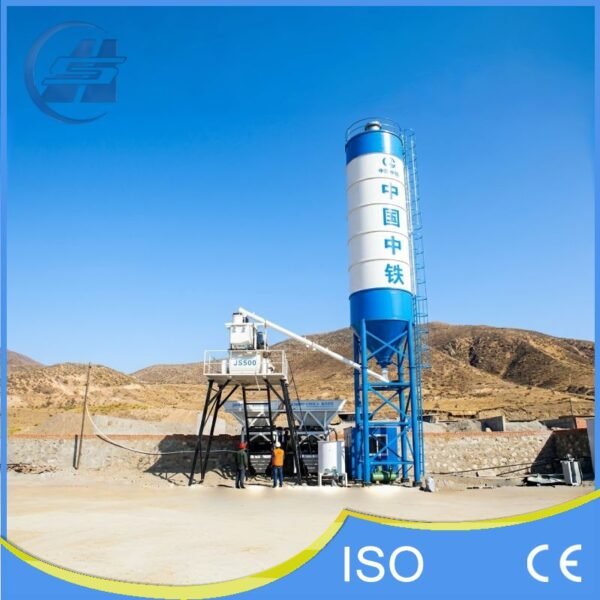

• Concrete Batching Plants: The perfect bulk storage companion for both mobile (YHZM/YHZS) and stationary batching plants.
• Dry Mortar Production Lines: Providing stable and dry storage for various fine powder additives and raw materials.
• Large Infrastructure Projects: Ensuring an uninterrupted supply of cement for long-term highway, dam, and bridge construction sites.

Technical Specifications (Standard Series)

* Note: The parameters above are standard configurations. We can manufacture fully customized silos regarding capacity, diameter, and discharging height based on your specific site layout.

Looking for a cost-effective bulk storage solution? Please contact us today for technical details and the best factory pricing!
