DHBT60/80 Diesel Concrete Pump
The ShangHe DHBT60 and DHBT80 diesel concrete trailer pumps deliver a massive 60-80 m³/h capacity and up to 450m horizontal pumping distance. Powered by robust Weichai and Yuchai engines with Kawasaki hydraulic systems, they are engineered for large-scale infrastructure and high-rise construction projects without relying on the power grid.
Brand
ShangHe
Discharge Capacity
60 - 80 m³/h
Conveying Range (Vertical/Horizontal)
Up to 120m / 450m
Max Aggregate Size
≤ 40mm
Key Components
Weichai/Yuchai Engine, Kawasaki Pump, Siemens PLC
Product Introduction
The ShangHe DHBT60 and DHBT80 Diesel Concrete Pumps represent the heavy-duty tier of our trailer-mounted pumping equipment. Designed to handle demanding, large-scale pouring tasks, these models significantly boost project efficiency with a maximum theoretical output of 80 m³/h.
Equipped with high-horsepower Weichai and Yuchai diesel engines (up to 176kW), these pumps offer unmatched power and independence from local electrical grids. Combined with a reinforced pumping system, they easily conquer ultra-long horizontal distances and extreme vertical heights, making them the ultimate powerhouse for major construction contractors.
Core Components & Advantages
- Ultra-High Pumping Pressure:
Achieving export pressures between 11 MPa and 16 MPa, these models can effortlessly push concrete up to 120 meters vertically and 450 meters horizontally, completely solving the challenge of high-altitude and long-distance pouring. - Premium Power & Hydraulics:
Driven by industry-leading Weichai/Yuchai diesel engines and heavy-duty Kawasaki main oil pumps (up to 280 series). This combination ensures massive torque, stable hydraulic flow, and exceptional fuel economy under heavy loads. - Large Aggregate Capability:
The upgraded hopper and conveying cylinder design allows for a maximum aggregate size of 40mm, making it highly adaptable to various commercial concrete mixtures. - Smart & Safe Operation:
Controlled by a highly reliable Siemens PLC system, offering precise operational logic, automatic reverse-pumping for blockage prevention, and comprehensive system monitoring.
Typical Applications
The immense power and reach of the DHBT60/80 series make them the top choice for heavy-duty and complex environments:
- High-Rise Buildings: Perfect for pouring concrete in commercial towers and residential skyscrapers where vertical reach exceeds 100 meters.
- Major Infrastructure: Bridges, tunnels, dams, and highway projects that demand continuous, high-volume concrete placement over long distances.
- Large Commercial Foundations: Capable of rapidly completing massive foundation mat pours.
- Remote Heavy Construction: Mining sites and off-grid facilities where heavy-duty diesel power is the only reliable option.

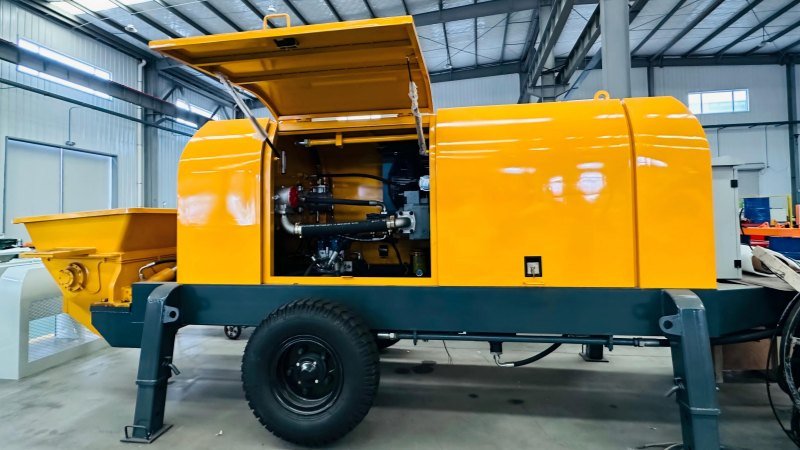

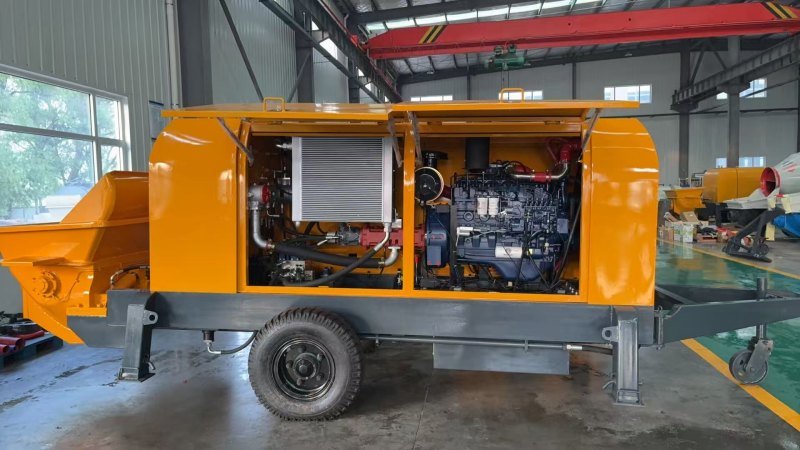

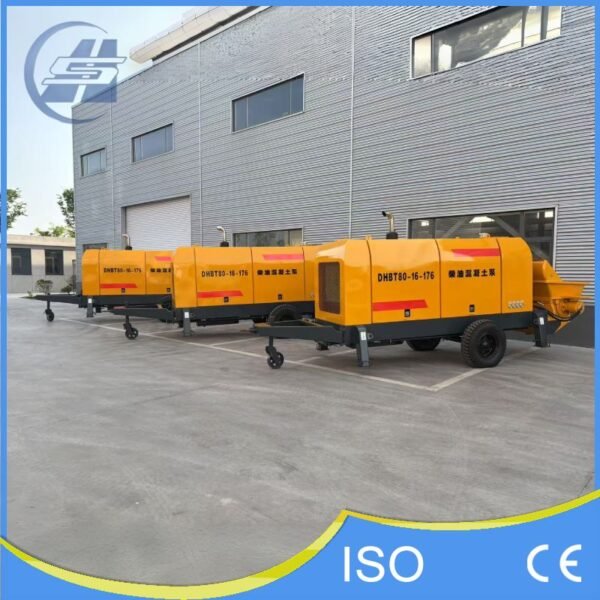

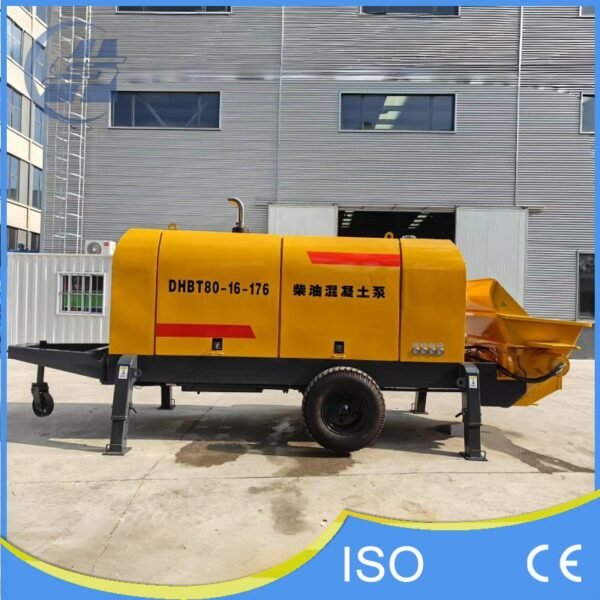

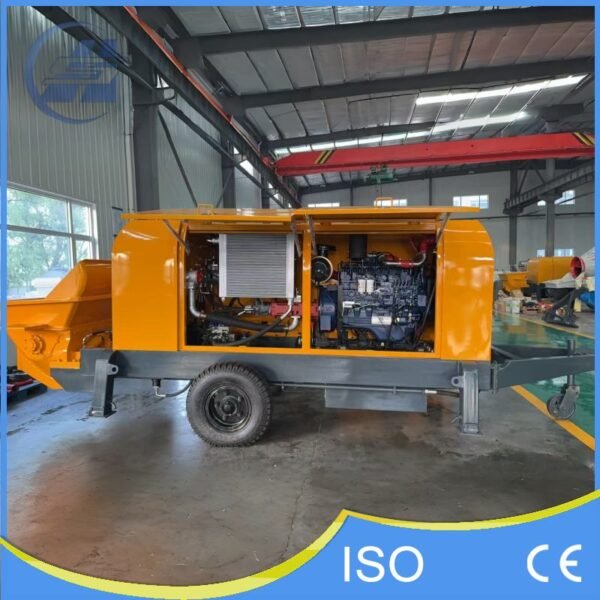

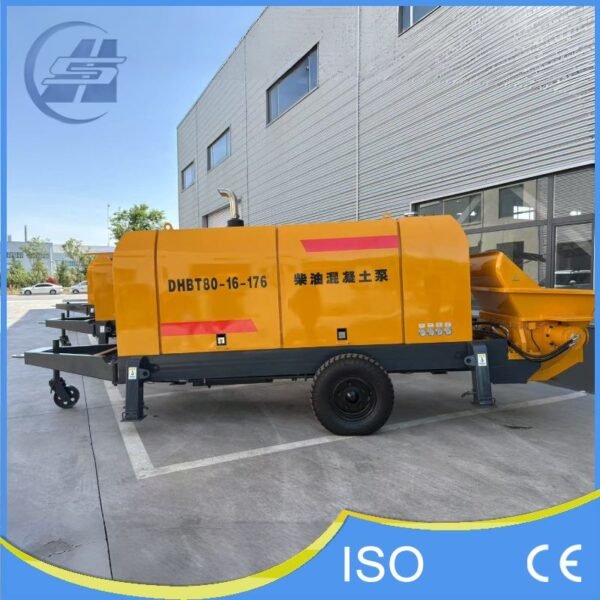

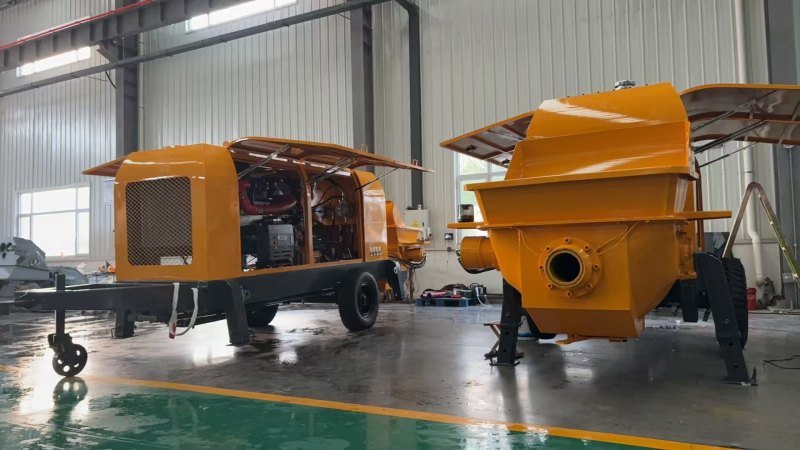

Product Photos
Technical Specifications
| Model | DHBT60.11.93 | DHBT60.13.129 | DHBT80.13.176 | DHBT80.16.176 |
|---|---|---|---|---|
| Discharge Capacity (m³/h) | 60 | 60 | 80 | 80 |
| Vertical / Horizontal Range (m) | 80 / 300 | 100 / 350 | 120 / 450 | 120 / 450 |
| Export Pressure (MPa) | 11 | 13 | 13 | 16 |
| Max. Aggregate Size (mm) | 35 | 40 | 40 | 40 |
| Main Oil Pump | Kawasaki 140 | Kawasaki 224 | Kawasaki 112 | Kawasaki 280 |
| Engine | Yuchai 93KW | Weichai 129KW | Weichai 176KW | Weichai 176KW |
| Total Mass (kg) | 3600 | 5800 | 6000 | 6300 |
Ready to conquer heavy-duty pumping tasks? Please contact us today for a free quote on the DHBT60/80 series diesel concrete pump!
