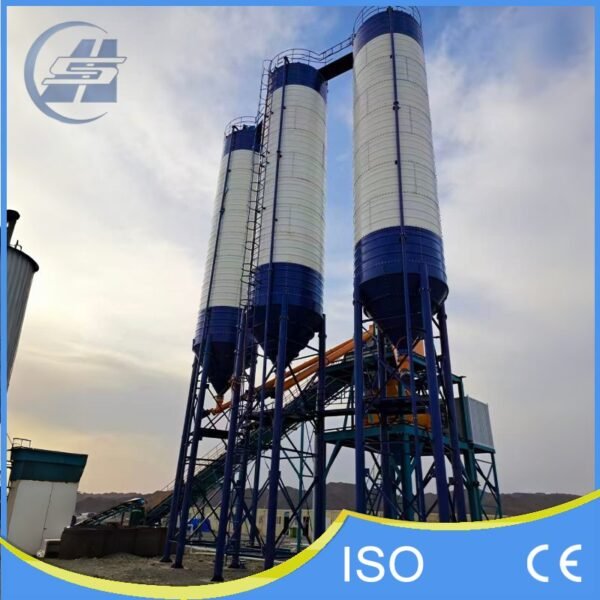

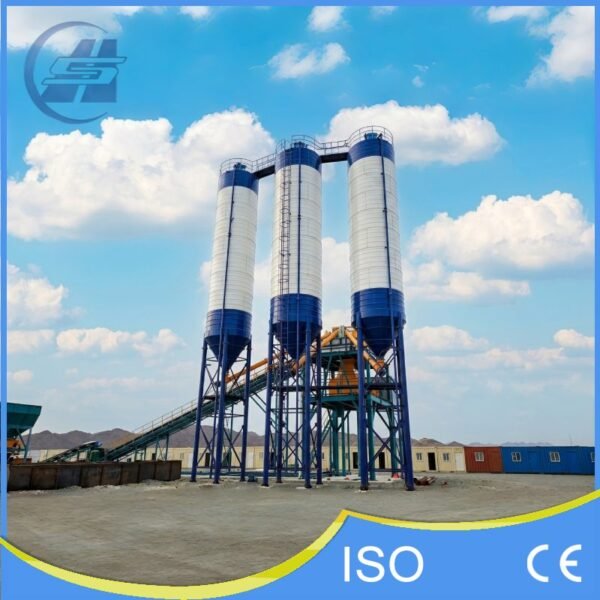

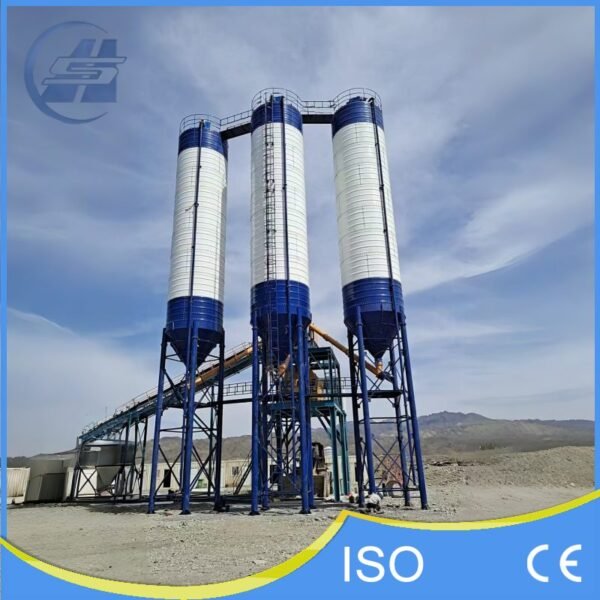

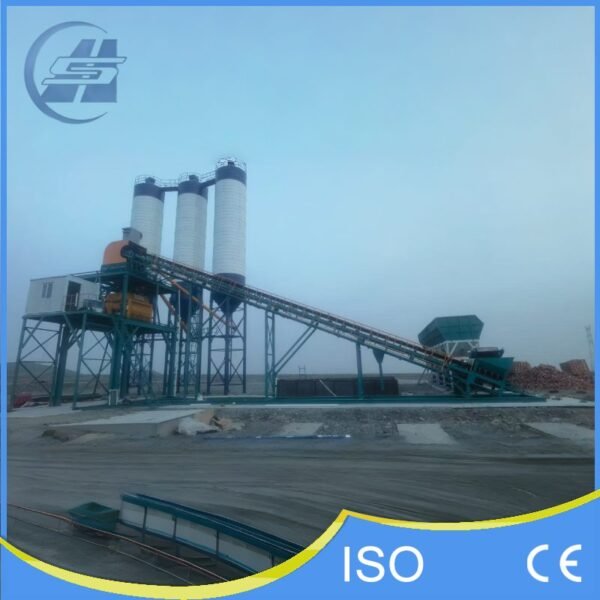

HZS120 Stationary Concrete Batching Plant

Product Introduction

The HZS120 Stationary Concrete Batching Plant is a heavy-duty, high-capacity concrete production facility engineered for the most demanding commercial and industrial applications. With a massive theoretical output of 120 cubic meters per hour, it is designed to provide a highly stable, continuous supply of premium-grade concrete for large-scale operations.

Equipped with a highly efficient belt conveyor feeding system and a powerful JS2000 twin-shaft mixer, the HZS120 minimizes batch cycle times while maximizing output. Its robust structural design and advanced automation make it the flagship choice for major commercial ready-mix suppliers and mega infrastructure contractors.

Core Components & Advantages

1. Ultra-Efficient JS2000 Mixer:
   Powered by the heavy-duty JS2000 twin-shaft compulsory mixer, this plant produces 2.0m³ of highly uniform concrete per batch. It is built for rigorous, round-the-clock commercial use and handles all types of concrete formulations with ease.
2. Continuous Belt Conveyor Feeding:
   The enclosed, inclined belt conveyor system ensures a rapid and continuous transfer of large aggregate volumes. This design maximizes production speed while significantly reducing dust emissions, meeting strict environmental standards for commercial plants.
3. High-Capacity Storage & Batching:
   Features the heavy-duty PLD3200 batching machine with 3 or 4 aggregate bins. Paired with high-capacity cement silos (100T to 300T optional), the plant is fully equipped to handle complex, multi-material mix designs and sustained high-volume output.
4. Precision Weighing System:
   Utilizes highly sensitive, microcomputer-controlled load cells for independent weighing. It strictly maintains recipe accuracy (Aggregate ±2%, Cement/Water/Additive ±1%) to guarantee the structural integrity of every single batch.
5. Smart Control & Custom Power Supply:
   Managed via a fully automated PLC control room with real-time monitoring and reporting capabilities. Additionally, the plant’s power supply can be strictly customized according to local voltage requirements, ensuring seamless global integration.

Typical Applications

The HZS120 plant is specifically tailored for top-tier, high-demand environments:

• Large Commercial Ready-Mix Plants: Supplying massive volumes of certified concrete for urban skyscrapers, commercial centers, and residential developments.
• Mega Engineering & Infrastructure: Providing continuous concrete supply for critical national projects like highways, high-speed railways, dams, and airports.
• Heavy Precast Manufacturing: Supporting continuous, high-volume production lines for large-scale precast structural components.

Technical Specifications

Ready to set up your own efficient concrete production line? Please contact us today for customized layout plans and the best factory pricing!
