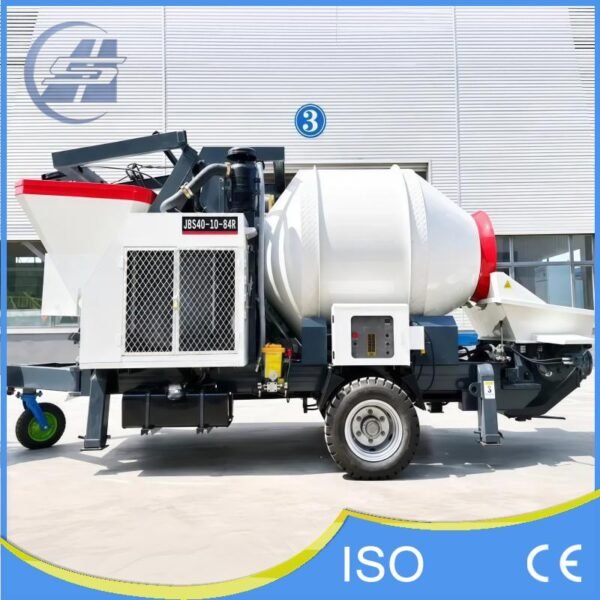

Diesel Concrete Mixer Pump
The Diesel Concrete Mixer Pump is a 2-in-1 portable solution combining efficient concrete mixing and pumping. Powered by a robust Yuchai diesel engine, it delivers a capacity of 35-45m³/h, making it the ideal choice for rural construction, housing projects, and remote job sites lacking reliable electricity.
Brand
ShangHe
Power Type
Diesel Engine (Yuchai 78KW - 93KW)
Conveying Capacity
35 - 45 m³/h
Max. Conveying Distance
50m-80m (Vertical) / 200m-300m (Horizontal)
Core Components
Kawasaki Main Oil Pump, Siemens PLC, Manuli Hydraulic Hose
Key Advantage
Independent of power grids, dual-function (mixing & pumping), and highly mobile for remote areas.
Product Introduction
The Diesel Concrete Mixer Pump is an innovative, dual-functional equipment piece that seamlessly integrates a concrete mixer and a concrete delivery pump into one compact, trailer-mounted unit. Powered entirely by a heavy-duty diesel engine, this machine is completely independent of external electrical grids.
With a conveying capacity ranging from 35 to 45 cubic meters per hour, it is specifically engineered for projects where electricity is scarce, unstable, or unavailable. It drastically reduces labor intensity, saves equipment footprint, and provides a continuous, efficient flow of concrete from the mixing drum straight to the pouring site.
Core Components & Advantages
- Independent Diesel Power:
Equipped with a powerful Yuchai diesel engine (78KW – 93KW), ensuring strong and stable performance even in the most remote locations. - Premium Hydraulic System:
Utilizes top-tier international components, including the Kawasaki main oil pump and Jining Taifeng hydraulic valves, ensuring high system pressure (up to 11 MPa) and reliable, blockage-free pumping. - Intelligent Operation:
Features a Siemens PLC electrical control system, making the operation highly automated, easy to learn, and safe to manage on busy job sites. - Durable Wear Parts:
High-quality Wuxi concrete cylinders and Changsha hydraulic cylinders, paired with premium Manuli hydraulic hoses, significantly extend the lifespan of the equipment and reduce maintenance costs. - High Mobility:
Designed as a trailer-mounted unit, it can be easily towed by a tractor or truck, allowing for rapid relocation between multiple construction sites.
Typical Applications
The Diesel Concrete Mixer Pump is the ultimate solution for challenging environments:
- Rural & Remote Construction: Perfect for building houses, rural roads, and agricultural facilities where the power grid has not yet reached.
- Multi-Story Buildings: Capable of pumping concrete vertically up to 80 meters, making it suitable for low-to-medium rise residential and commercial buildings.
- Infrastructure Maintenance: Ideal for tunnels, bridges, and civil engineering projects that require flexible, on-the-go concrete pouring.
Technical Specifications
| Model | DJBT30.08.76 | DJBT40.10.82 | DJBT50.10.88 | DJBT50.11.92 |
|---|---|---|---|---|
| Main oil pump (mlr) | Kawasaki 112 | Kawasaki 112 | Kawasaki 140 | Kawasaki 140 |
| Concrete Cylinder bore/stroke (mm) | Wuxi 180*800 | Wuxi 180*800 | Wuxi 180*800 | Wuxi 200*1000 |
| Hydraulic Cylinder bore/stroke (mm) | Changsha hydraulic cylinder 90*800 | Changsha hydraulic cylinder 100*800 | Changsha hydraulic cylinder 100*1000 | Changsha hydraulic cylinder 110*1000 |
| Engine | Yuchai 78KW | Yuchai 78KW | Yuchai 93KW | Yuchai 93KW |
| Hydraulic valve assembly | Jining Taifeng | Jining Taifeng | Jining Taifeng | Jining Taifeng |
| PLC unit/electrical components | Siemens | Siemens | Siemens | Siemens |
| Hydraulic hose | Manuli | Manuli | Manuli | Manuli |
| Concrete conveying capacity (m³/h) | 35 | 38 | 43 | 45 |
| Max. Conveying Height/Distance (m) | 50 / 200 | 60 / 250 | 60 / 250 | 80 / 300 |
| Export pressure (MPa) | 8 | 10 | 10 | 11 |
| Rated speed (rpm) | 1800 | 1800 | 1800 | 2200 |
| Max. Aggregate Size (mm) | 35 | 35 | 35 | 35 |
| Hopper Capacity × Loading Height | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 |
| Pump pipe diameter (mm) | ∅125 | ∅125 | ∅125 | ∅125 |
| Concrete Slump | 160-220 | 160-220 | 160-220 | 160-220 |
| Overall Packing Dimensions (mm) | 4500*2100*2300 | 4500*2100*2300 | 4500*2100*2300 | 4500*2100*2300 |
| Disassembled Packing Dimensions (mm) | 5600*2100*2300 | 5600*2100*2300 | 5600*2100*2300 | 5600*2100*2300 |
| Total mass (kg) | 5200 | 5300 | 5400 | 5500 |
| Mixer model (L) | 450 | 450 | 450 | 450 |
| Container Loading | 20GP | 20GP | 20GP | 20GP |
| Note: We can customize according to your requirements. | ||||
Looking for a highly mobile, off-grid concrete solution? Please contact us today to get a free quote and customize your diesel mixer pump!
