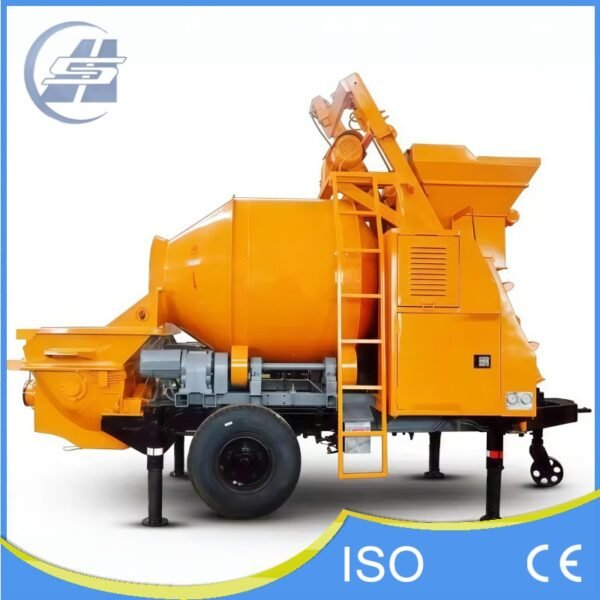

Electric Concrete Mixer Pump
The Electric Concrete Mixer Pump offers a highly efficient 40m³/h production and pumping capacity. Powered by a robust 45kW electric motor system, this compact towable unit provides a cost-effective, low-noise, and zero-emission solution for civil construction and high-rise building projects.
Brand
ShangHe
Power Type
Electric Motor (45 kW Total Rated Power)
Max. Theoretical Output
40 m³/h
Max. Delivery Distance
120m (Vertical) / 500m (Horizontal)
Valve Type
S Tube Valve
Key Advantage
Eco-friendly zero emissions, low operating noise, and high-efficiency mixing & pumping in a single highly mobile unit.
Product Introduction
The Electric Concrete Mixer Pump is an advanced 2-in-1 construction machine that seamlessly integrates concrete mixing and high-pressure pumping. Driven by a stable and reliable electric power system, it is the perfect choice for job sites with access to a steady electrical grid, offering significantly lower operating costs and zero exhaust emissions compared to diesel alternatives.
With a theoretical output of 40 cubic meters per hour, this machine eliminates the need for separate mixers and concrete pumps. Engineered with a compact towable wheeled chassis, it guarantees rapid deployment and relocation, making continuous concrete pouring more efficient and economical for modern construction projects.
Core Components & Advantages
- Robust Electric Power System:
Powered by a total rated 45kW motor system, ensuring stable, continuous, and environmentally friendly operation with low noise levels—ideal for urban and residential construction zones. - Superior Pumping Range:
Capable of delivering concrete up to 120 meters vertically and 500 meters horizontally, easily meeting the demands of high-rise buildings and long-distance horizontal paving. - Reliable S Tube Valve:
Equipped with an advanced S Tube distribution valve that handles a maximum concrete pumping pressure of 10 MPa, ensuring smooth material flow and reducing the risk of pipe blockages even with 40-50mm aggregates. - High-Performance Hydraulic System:
Features an open-loop hydraulic circuit with a 28 MPa pumping system pressure and a large 370L hydraulic oil tank, maintaining optimal fluid temperatures and extending the lifespan of core components. - Highly Mobile Design:
Designed with a heavy-duty wheeled chassis, the unit can be easily towed by a truck or tractor, allowing for quick transitions between multiple working areas on the same site or across different projects.
Typical Applications
The electric mixer pump is perfectly suited for a wide range of grid-powered scenarios:
- Urban & Residential Construction: Its low noise and zero-emission profile make it highly compliant with strict city environmental regulations.
- High-Rise Buildings: Excellent vertical pumping capabilities (up to 120m) ensure efficient concrete delivery for multi-story structures.
- Civil Engineering & Infrastructure: Ideal for floor pouring, tunnels, bridges, and municipal maintenance projects.
Technical Specifications
| Item | Unit | Parameters |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 40 |
| Feeding Capacity (Mixer) | L | 500 |
| Discharging Capacity (Mixer) | L | 450 |
| Max. Concrete Pumping Pressure | MPa | 10 |
| Distribution Valve Type | – | S Tube Valve |
| Concrete Cylinder (Diameter × Stroke) | mm | ∅180 × 1000 |
| Hopper Capacity | L | 550 |
| Outlet Diameter | mm | ∅150 |
| Power System | ||
| Winding Motor Power | kW | 5.5 |
| Mixing Motor Power | kW | 4.5 |
| Water Pump Motor Power | kW | 0.55 |
| Total Rated Power | kW | 45 |
| Rated Speed | r/min | 1480 |
| Hydraulic System | ||
| Circuit Type | – | Open Loop System |
| Pumping System Pressure | MPa | 28 |
| Mixing System Pressure | MPa | 6–8 |
| Hydraulic Oil Tank Capacity | L | 370 |
| Max. Delivery Distance (Vertical / Horizontal) | m | 120 / 500 |
| Other Parameters | ||
| Max. Aggregate Size | mm | Stone: 40–50 |
| Concrete Delivery Pipe Diameter | mm | ∅125 |
| Overall Dimensions (L × W × H) | mm | 4200 × 2300 × 3150 |
| Total Weight | kg | 4500 |
