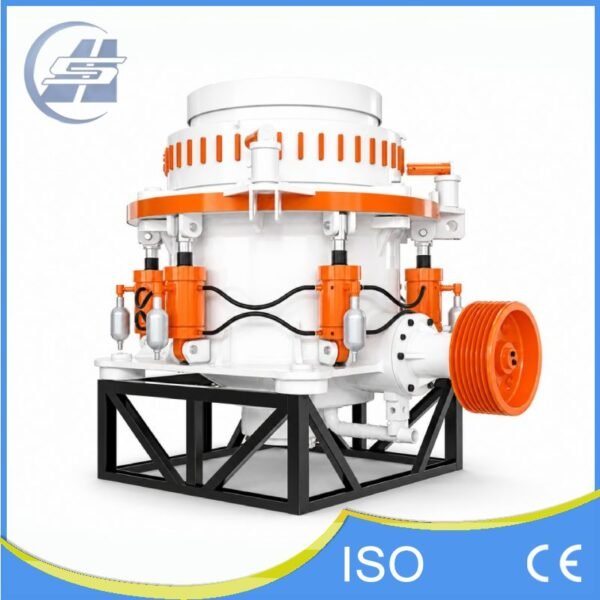

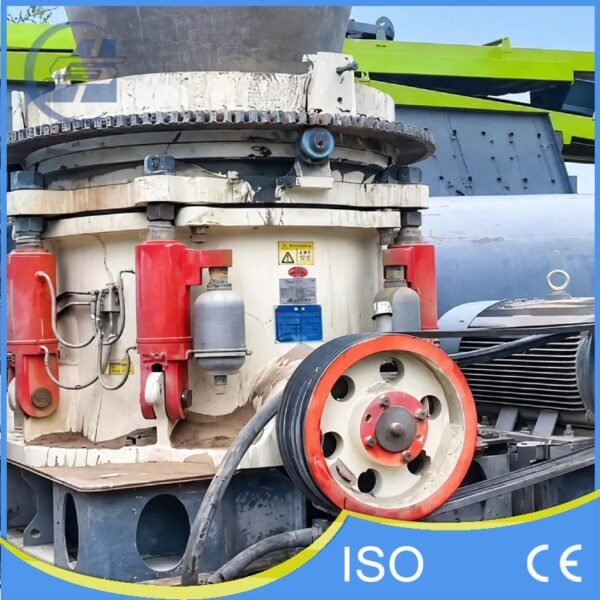

Hydraulic Cone Crusher

Product Introduction

The Hydraulic Cone Crusher (HPC Series) is an advanced, high-efficiency crushing machine engineered for secondary and tertiary crushing stages. By integrating modern hydraulic technologies with a robust mechanical structure, it offers a superior alternative to traditional spring cone crushers. It is specifically designed to handle medium to extremely hard materials such as granite, basalt, diabase, and various metallic ores.

With a highly flexible production capacity ranging from 55 to 700 tons per hour, the HPC series ensures a smooth and continuous operation. Its optimized crushing chamber and high swing frequency result in a greater throughput, a higher crushing ratio, and an excellent cubic shape of the final aggregate, making it perfect for demanding commercial aggregate plants and mining operations.

Core Components & Advantages

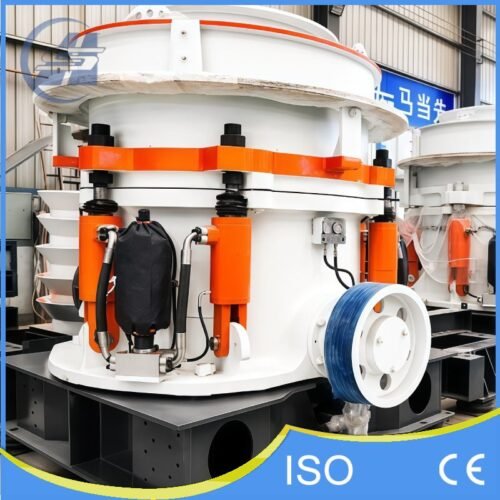

1. Advanced Hydraulic System:
   Equipped with multiple hydraulic cylinders that provide immense crushing force. More importantly, these cylinders serve as a highly responsive tramp iron release mechanism. If an uncrushable object enters the cavity, the hydraulic system automatically lowers the moving cone to let it pass and instantly resets, protecting the machine from severe damage.
2. Versatile Cavity Configurations:
   Each model (from HPC-200 to HPC-500) is available in both Coarse (C) and Fine (F) cavity types. This versatility allows operators to easily adapt the crusher to different feed sizes (up to 320 mm) and specific final product requirements without needing to replace the entire machine.
3. Easy Discharge Adjustment:
   The hydraulic motor allows for quick, stepless, and precise adjustment of the discharge opening size (ranging from 6 mm to 13 mm). This ensures consistent product gradation and significantly reduces downtime compared to manual adjustment methods.
4. High Crushing Efficiency:
   The combination of a large moving cone diameter, optimal eccentric throw, and high-speed rotation ensures that materials are crushed thoroughly through inter-particle action, increasing the yield of fine aggregates and improving the overall particle shape.
5. Durable & Low Maintenance:
   Built with a heavy-duty cast frame and premium wear parts (mantle and bowl liner). The advanced grease sealing and hydraulic lubrication systems keep dust out of the internal bearings, ensuring a longer service life and lower routine maintenance costs.

Typical Applications

The HPC Hydraulic Cone Crusher is widely utilized in high-demand industries:

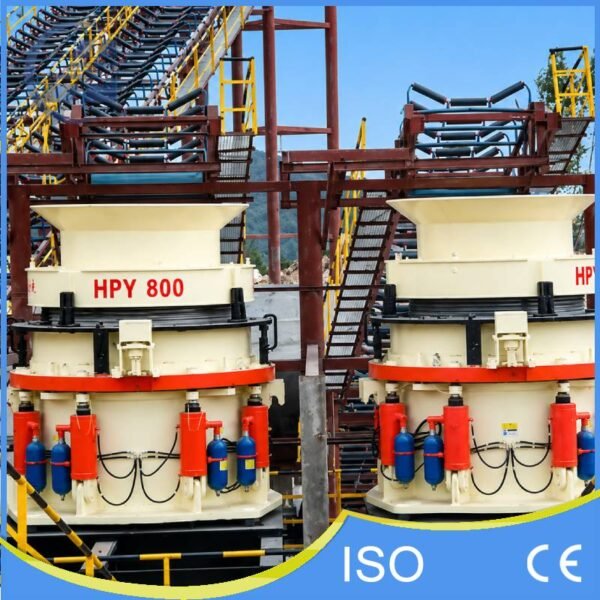

• Commercial Aggregate Production: Producing massive volumes of high-grade cubic stones for highways, airports, and high-strength concrete.
• Hard Rock Crushing: Effortlessly crushing highly abrasive materials like river pebbles, granite, and quartzite.
• Mining & Ore Beneficiation: Highly efficient in secondary and tertiary crushing stages for iron ore, copper ore, and gold ore to improve subsequent milling efficiency.

Technical Specifications

Looking for maximum crushing force and premium aggregate shapes? Please contact us today for professional equipment configuration and a free quote!
