PF Impact Crusher

PF Impact Crusher

The PF series Impact Crusher delivers exceptional secondary crushing performance with a capacity ranging from 15 to 800 t/h. Designed for medium-hard materials, it produces excellent cubic-shaped aggregates, making it an essential, high-efficiency component for stationary stone crushing plants.

Brand

ShangHe

Max Feed Size

≤250 mm to ≤800 mm

Capacity

15 – 800 t/h

Motor Power

45 kW to 710 kW

Key Advantage

Excellent cubic final product shape, high reduction ratio, and hydraulic opening mechanism for easy maintenance

Product Introduction

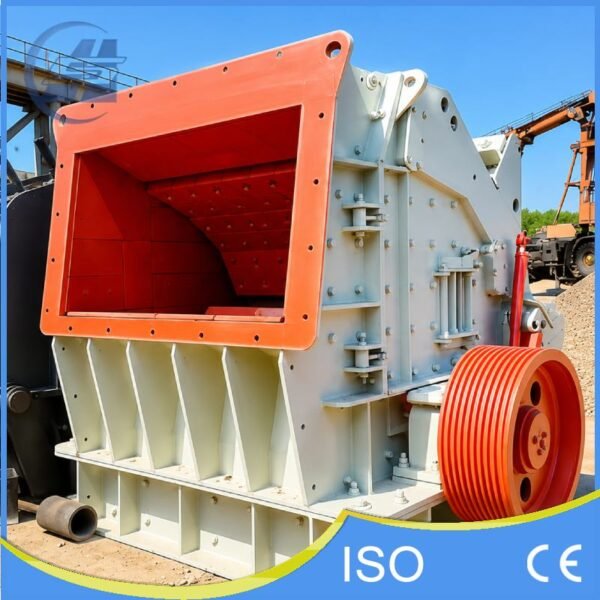

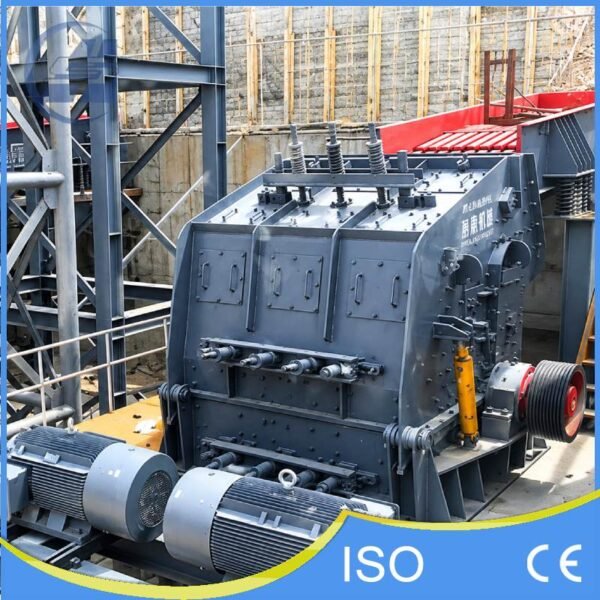

The PF Impact Crusher is a highly efficient crushing machine primarily used for secondary and tertiary crushing in stationary stone crushing plants. It utilizes impact energy to crush materials, ensuring that the finished products possess an excellent, uniform cubic shape without tension or cracks.

With a comprehensive range of models, the PF series provides a wide production capacity ranging from 15 to 800 tons per hour. It is highly capable of processing medium-hard and soft rocks, making it the preferred choice for high-quality aggregate production in the construction and highway industries.

Core Components & Advantages

Superior Cubic Output:
The unique impact crushing process guarantees that the final aggregate has a premium cubic shape, making it highly suitable for high-grade concrete and highway surface materials.
Wide Processing Range:
The series can handle maximum feeding sizes from ≤250 mm in the compact PF-1007 model, all the way up to ≤800 mm in the heavy-duty PFV-1820 model.
Heavy-Duty Rotor:
Equipped with a robust rotor ranging in size from Φ1000 × 700 mm to a massive Φ1800 × 2000 mm, providing high rotational inertia and powerful impact force.
Convenient Hydraulic Maintenance:
As seen in the equipment design, the crusher features a sturdy housing equipped with a hydraulic opening mechanism. This allows the rear cover to be easily opened for quick inspection and replacement of blow bars and impact plates.
Durable Wear Parts:
The blow bars are made of high-chrome materials, ensuring excellent wear resistance and an extended service life even when processing abrasive materials.

Typical Applications

The PF Impact Crusher is widely utilized across various industries:

Aggregate Production: Producing high-quality cubic stones for highways, railways, and airport runways.
Building Materials: Crushing limestone, concrete blocks, and brick rubble for commercial concrete and construction recycling.
Mining Industry: Secondary crushing of various ores and medium-hard minerals.

Technical Specifications

The following technical specifications are based on the standard configuration.

Model	Rotor Size	Feed Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimensions (mm)
PF-1007	Φ1000 × 700	400 × 730	≤250	15–60	45	2319 × 1654 × 2558
PF-1010	Φ1000 × 1050	400 × 1080	≤300	50–90	55	2319 × 2001 × 2558
PF-1210	Φ1250 × 1050	450 × 1060	≤300	80–150	90	2585 × 2053 × 2809
PFV-1214	Φ1250 × 1400	450 × 1440	≤300	100–200	132	2582 × 2403 × 2809
PFV-1315	Φ1320 × 1500	550 × 1530	≤350	130–280	160	2930 × 2761 × 3053
PFV-1320	Φ1320 × 2000	610 × 1900	≤500	180–400	220	3224 × 3175 × 2706
PFV-1520	Φ1500 × 2000	830 × 2040	≤700	300–550	315–400	3959 × 3564 × 3330
PFV-1820	Φ1800 × 2000	1260 × 2040	≤800	600–800	630–710	4400 × 3866 × 4009
Note: Capacity may vary depending on material hardness, moisture content, and feeding conditions.
