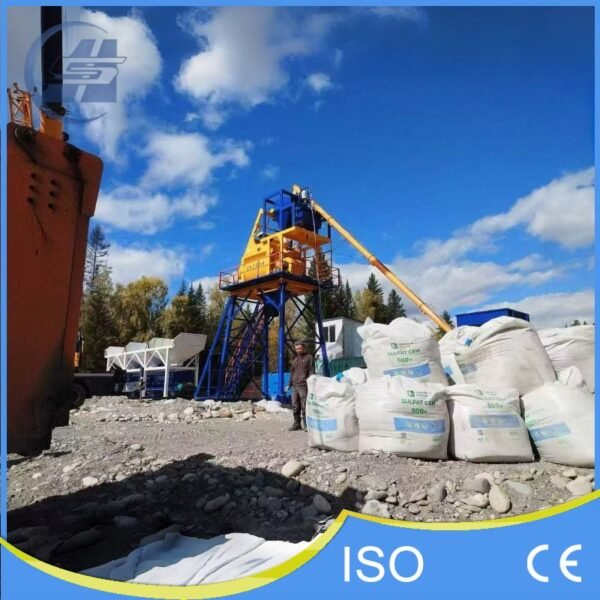

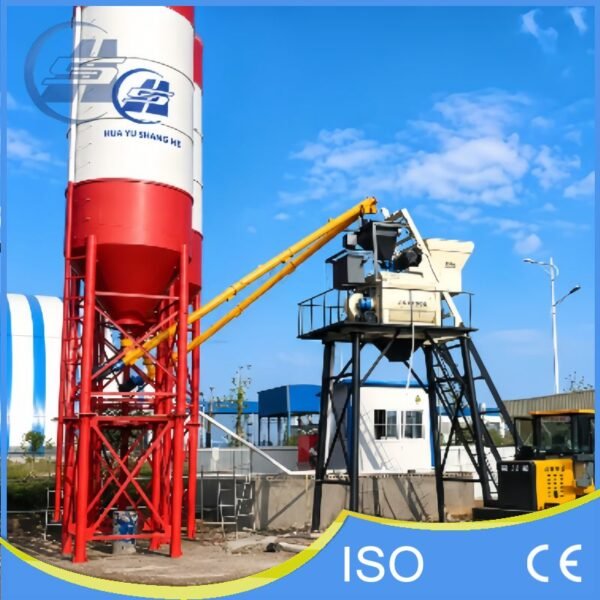

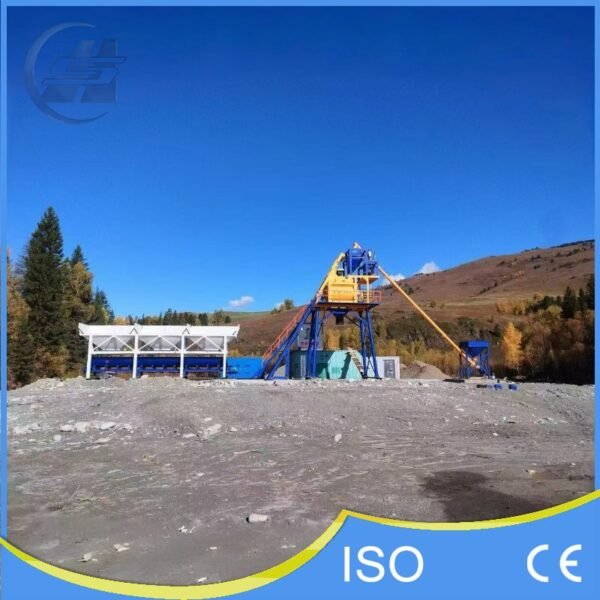

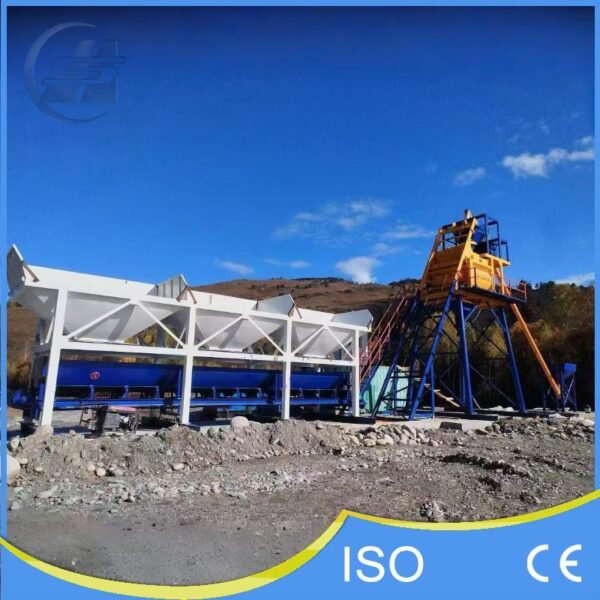

HZS75 Stationary Concrete Batching Plant

Product Introduction

The HZS75 Stationary Concrete Batching Plant is a high-performance, robust, and fully functional concrete production facility. Designed with a theoretical output of 75 cubic meters per hour, it is the standard mid-to-large capacity choice for contractors and business owners looking to establish a reliable and continuous concrete supply.

Utilizing a space-saving skip hoist feeding mechanism, the HZS75 requires a significantly smaller land footprint compared to traditional belt-conveyor models of similar capacity. Combined with a powerful JS1500 twin-shaft mixer and a PLD2400 batching machine, it guarantees high-quality, homogeneous concrete mixing for structural foundations, precast elements, and commercial ready-mix operations.

Core Components & Advantages

1. High-Efficiency JS1500 Mixer:
   At the heart of the plant is the JS1500 twin-shaft compulsory mixer, capable of producing 1.5m³ of perfectly blended concrete per batch. Its dual mixing shafts ensure rapid, even, and heavy-duty mixing for various concrete grades.
2. Space-Saving Skip Hoist:
   Aggregates are lifted into the mixer via a durable skip hoist system. This vertical feeding design reduces the total footprint of the plant, making it an excellent high-capacity solution for sites with limited space.
3. Precise Independent Weighing:
   Equipped with highly accurate load cells for cement, water, liquid additives, and aggregates. The independent weighing system ensures strict compliance with standard concrete recipes, eliminating material waste (Aggregate ±2%, Cement/Water/Additive ±1%).
4. Modular & Quick Installation:
   The main structure is highly modular, allowing the plant to be easily transported and rapidly assembled or disassembled on the job site.
5. Smart Control System:
   Managed via a centralized control panel or an optional fully computerized PLC system, allowing operators to monitor the entire batching process, store recipes, and ensure consistent output with minimal manual intervention.

Typical Applications

The HZS75 plant is widely deployed across a variety of medium to large operations:

• Commercial Concrete Plants: Supplying continuous, high-quality ready-mix concrete for local developers.
• Precast Concrete Factories: Providing stable output for the production of hollow blocks, paving stones, and concrete pipes.
• Infrastructure Projects: Serving as an on-site batching solution for bridges, highways, and large-scale municipal constructions.

Technical Specifications

Ready to set up your own efficient concrete production line? Please contact us today for customized layout plans and the best factory pricing!
