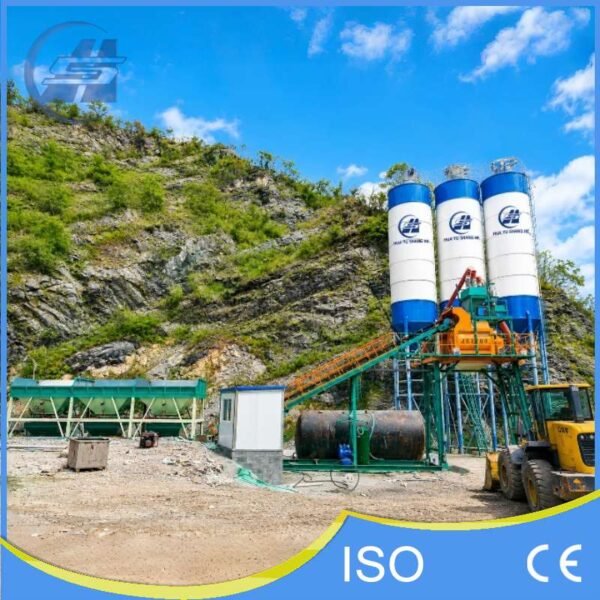

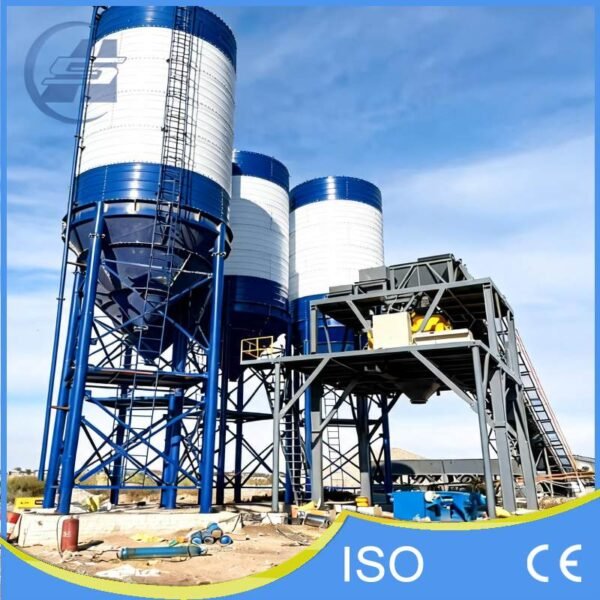

HZS90 Stationary Concrete Batching Plant

Product Introduction

The HZS90 Stationary Concrete Batching Plant is a heavy-duty, high-performance concrete production facility designed for demanding commercial and engineering applications. With a theoretical output of 90 cubic meters per hour, it provides a highly stable and continuous supply of premium concrete.

Unlike smaller skip-hoist models, the HZS90 utilizes a highly efficient belt conveyor feeding system. This ensures a smooth, continuous transfer of large volumes of aggregates to the JS1500 twin-shaft mixer, significantly reducing batch cycle times and maximizing overall productivity for large-scale operations.

Core Components & Advantages

1. High-Efficiency JS1500 Mixer:

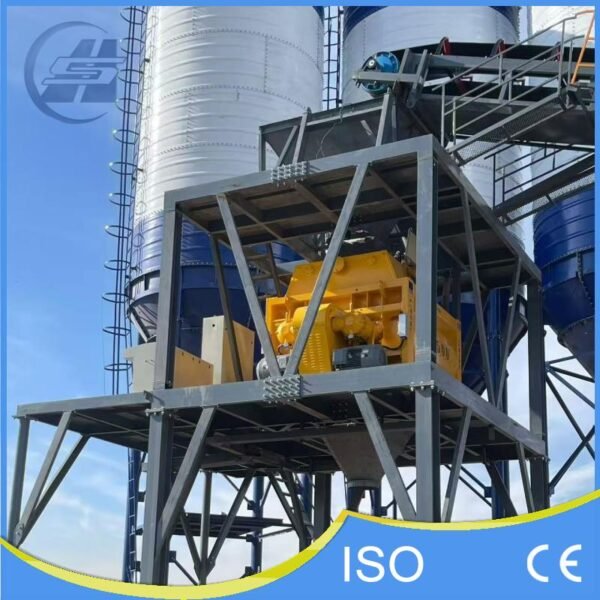

   Equipped with the robust JS1500 twin-shaft compulsory mixer, producing 1.5m³ of highly uniform concrete per batch. It is engineered for heavy-duty commercial use and can efficiently mix dry-hard, semi-dry, plastic, and various other concrete formulations.
2. Continuous Belt Conveyor Feeding:
   The inclined belt conveyor system ensures rapid, continuous, and enclosed aggregate feeding. This not only boosts production efficiency but also reduces material spillage and environmental dust, making it ideal for strict commercial environments.
3. Flexible & High-Capacity Storage:

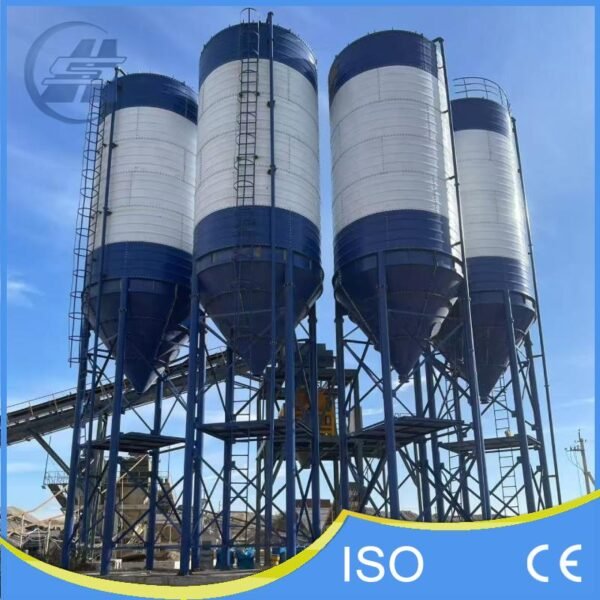

   Features the versatile PLD2400 batching machine with optional 3 to 5 aggregate bins. Combined with multiple large-capacity cement silos (100T / 150T / 200T optional), the plant is fully adaptable to complex mix designs and sustained high-volume production.
4. Precise Weighing System:
   Utilizes microcomputer-controlled precision load cells. The independent weighing ensures strict adherence to recipes with outstanding accuracy (Aggregate ±2%, Cement/Water/Additive ±1%), guaranteeing structural integrity in every batch.
5. Fully Automated PLC Control:
   Managed via an advanced computerized control room. Operators can easily monitor the entire production workflow, store custom concrete formulas, and print real-time production reports with minimal manual intervention.

Typical Applications

The HZS90 plant is specifically tailored for high-demand environments:

• Commercial Ready-Mix Plants: Supplying large volumes of certified, high-grade concrete for urban development and commercial construction.
• Large Engineering Projects: Providing a dedicated, continuous concrete supply for major infrastructure, including highways, bridges, airports, and dams.
• Large-Scale Precast Manufacturing: Supporting the heavy production lines of large precast structural elements.

Technical Specifications

Ready to set up your own efficient concrete production line? Please contact us today for customized layout plans and the best factory pricing!
