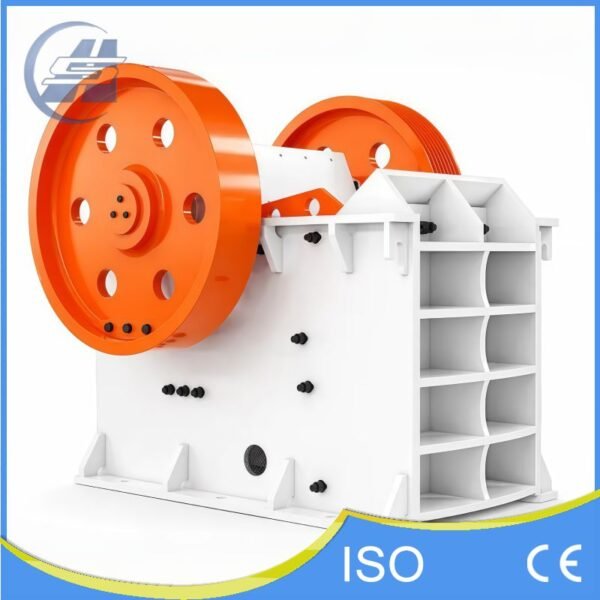

Jaw Crusher

Product Introduction

The PE & PEX Series Jaw Crusher is one of the most classic, widely used, and reliable crushing machines in the mining and aggregate industries. Known as the “tiger’s mouth,” it serves as the critical primary crusher (PE series) for reducing massive, hard rocks into manageable sizes, while the PEX series is specialized for secondary and fine crushing applications.

With an incredibly broad production capacity ranging from 5 to 1000 tons per hour, it can handle maximum feed sizes up to 1200 mm. Its simple yet extremely robust structure makes it the undeniable backbone of any stationary stone crushing plant, ensuring continuous, heavy-duty operation in the harshest environments.

Core Components & Advantages

Deep Crushing Cavity:
Engineered with a deep, V-shaped crushing cavity that has no dead zones. This design maximizes the feeding capacity and output, ensuring a high crushing ratio and uniform product size.
Heavy-Duty Structure & Flywheels:

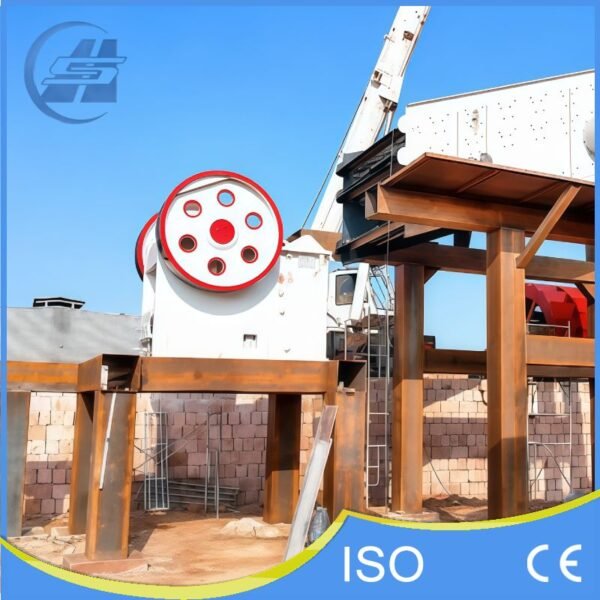

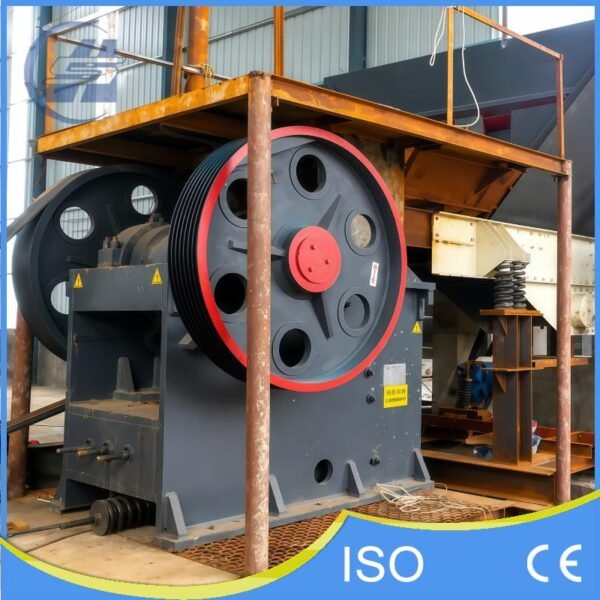

Built with a premium cast steel frame and massive, precisely balanced flywheels (as shown in the equipment photos). These flywheels store energy and provide a continuous, powerful crushing force to easily break the hardest stones.
Adjustable Discharge Opening:
Equipped with a simple and reliable wedge or shim adjustment system for the discharge opening (ranging from 18 mm to 350 mm depending on the model). This allows operators to quickly adapt the output size to meet different production line requirements.
Durable Jaw Plates:
The movable and fixed jaw plates are manufactured from high-manganese steel, offering exceptional wear resistance and longevity even when processing highly abrasive materials like granite and quartzite.
Easy Maintenance:
The straightforward mechanical design, featuring a heavy-duty eccentric shaft and premium bearings, ensures that daily maintenance, lubrication, and part replacements are quick and cost-effective.

Typical Applications

The Jaw Crusher is universally utilized across multiple heavy industries:

Primary Aggregate Crushing: The indispensable first stage for crushing river pebbles, granite, basalt, and limestone in quarry plants.
Mining Industry: Coarse crushing of various metallic and non-metallic ores (iron, copper, gold) before secondary cone or impact crushing.
Construction Waste Recycling: Highly effective at breaking down large concrete blocks and debris from demolition sites.

Technical Specifications

Model	Feed Opening (mm)	Max Feeding Size (mm)	Discharge Opening Range (mm)	Capacity (t/h)	Overall Dimensions (mm)
PE-250×400	250×400	210	20–60	5–21	1300×1090×1270
PE-400×600	400×600	340	40–100	16–64	1730×1730×1630
PE-500×750	500×750	425	50–100	40–110	1980×2080×1870
PE-600×750	600×750	500	150–200	80–240	2070×2000×1920
PE-600×900	600×900	500	65–160	50–160	2190×2206×2300
PE-750×1060	750×1060	630	80–140	110–320	2600×2430×2800
PE-800×1060	800×1060	640	130–190	130–320	2710×2430×2800
PE-830×1060	830×1060	650	160–220	150–336	2740×2430×2800
PE-870×1060	870×1060	660	200–260	190–336	2810×2430×2800
PE-900×1060	900×1060	685	230–290	230–390	2870×2420×2940
PE-900×1200	900×1200	750	95–165	220–380	3380×2870×3330
PE-1000×1200	1000×1200	850	195–265	315–500	3480×2870×3330
PE-1200×1500	1200×1500	1020	150–350	400–800	4200×3300×3500
PE-1500×1800	1500×1800	1200	220–350	500–1000	5160×3660×4248
PEX-150×750	150×750	120	18–48	8–25	1200×1530×1060
PEX-250×750	250×750	210	25–60	13–35	1380×1750×1540
PEX-250×1000	250×1000	210	25–60	16–52	1560×1950×1390
PEX-250×1200	250×1200	210	25–60	20–61	2140×1660×1500
PEX-300×1300	300×1300	250	20–90	16–105	2720×1950×1600
