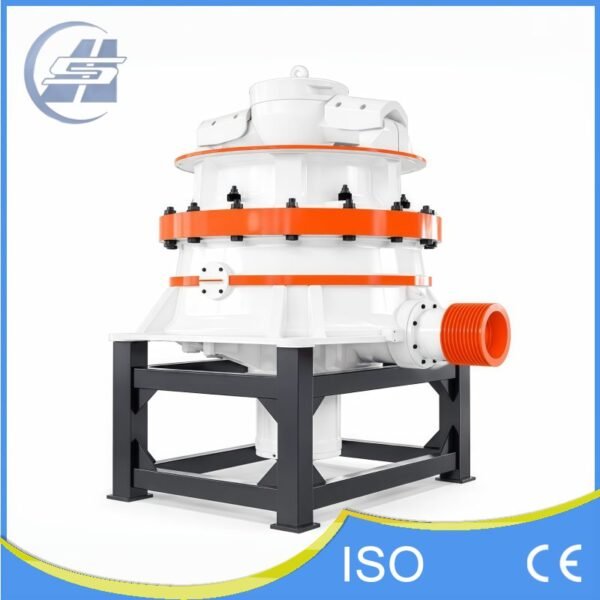

Single-Cylinder Hydraulic Cone Crusher

Product Introduction

The Single-Cylinder Hydraulic Cone Crusher (SC Series) is an advanced, high-performance crushing machine designed for the secondary and tertiary crushing of medium to extremely hard materials. By integrating mechanical, hydraulic, electrical, and intelligent automation technologies, the SC series represents the highest standard of modern crushing equipment.

With a massive production capacity ranging from 36 to 2181 tons per hour, it effortlessly handles tough materials such as granite, basalt, iron ore, and river pebbles. The innovative single-cylinder design simplifies the internal structure while maximizing crushing force, resulting in a highly reliable, space-saving, and economical solution for large-scale mining and aggregate operations.

Core Components & Advantages

Advanced Hydraulic System:
Features a direct-drive single hydraulic cylinder at the bottom that integrates the functions of adjusting the discharge opening and providing overload protection. If uncrushable materials (like iron) enter the chamber, the cylinder automatically lowers the main shaft to release the material, protecting the machine from damage.
Versatile Crushing Cavities:
Available in multiple cavity types, including Coarse (C1, C2) and Fine (F1-F5) configurations. This allows the crusher to adapt to a wide range of feed sizes (up to 560mm) and varying final product requirements within the same production line.
High Crushing Efficiency:
The optimized crushing chamber geometry, combined with a large eccentricity and high swinging frequency, ensures maximum throughput, higher crushing ratios, and a superior cubic shape of the final aggregate.
Intelligent Automation Control:
Equipped with a highly responsive PLC and touchscreen control system. It continuously monitors operating pressure, temperature, and wear levels, allowing operators to easily adjust settings and ensure the crusher operates at peak efficiency.
Heavy-Duty & Durable Design:
Built with a robust cast steel frame and premium alloy wear parts to withstand the harshest working conditions, significantly reducing maintenance downtime and operating costs.

Typical Applications

The SC Single-Cylinder Hydraulic Cone Crusher is widely utilized in high-demand industries:

Hard Rock Crushing: Ideal for processing abrasive and tough rocks like granite, basalt, and quartzite for high-grade construction aggregates.
Mining & Ore Beneficiation: Highly efficient in secondary and tertiary crushing stages for iron ore, copper ore, and gold ore to improve subsequent milling efficiency.
Infrastructure Projects: Providing massive volumes of premium cubic stones for highways, high-speed railways, and dam constructions.

Technical Specifications

Model	Cavity Type	Max Feed Size (mm)	Min Discharge Opening (mm)	Power (kW)	Capacity (t/h)
SC100S	C1	250	22	90	85–170
SC100S	C2	200	19	90	70–130
SC160S	C1	360	25	160	125–345
SC160S	C2	300	22	160	108–305
SC250S	C1	450	35	250	267–605
SC250S	C2	400	29	250	225–515
SC315S	C1	560	41	315	349–1050
SC315S	C2	500	38	315	318–892
SC100	F1	150	10	90	45–135
SC100	F2	90	10	90	43–118
SC100	F3	50	6	90	36–71
SC160	F1	200	13	160	69–215
SC160	F2	115	10	160	57–184
SC160	F3	75	8	160	63–126
SC250	F1	215	16	250	116–396
SC250	F2	140	13	250	97–328
SC250	F3	70	8	250	95–252
SC315	F1	275	16	315	177–662
SC315	F2	175	16	315	162–552
SC315	F3	85	13	315	195–401
SC560	F1	300	22	560	448–1512
SC560	F2	195	19	560	380–1373
SC560	F3	90	13	560	357–912
SC750	F1	370	25	750	394–2181
SC750	F2	300	19	750	342–2020
SC750	F3	230	16	750	267–1814
SC750	F4	120	13	750	248–1165
SC750	F5	85	10	750	185–1170
Note: Capacity may vary depending on material hardness, moisture content, and feeding conditions.
