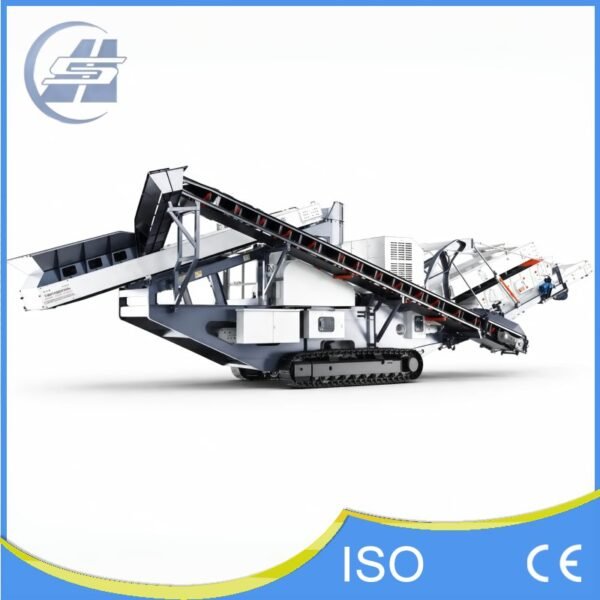

Tracked Mobile Crushing and Screening Plant
The ShangHe Tracked Mobile Crushing and Screening Plant delivers highly efficient material classification with a massive capacity ranging from 75 to 700 t/h. Driven by a heavy-duty crawler chassis, this self-propelled unit provides ultimate mobility and quick setup for rugged mining sites and construction waste recycling.
Brand
ShangHe
Max Feed Size
400 mm
Screen Mesh Size
5 – 80 mm
Capacity
75 – 700 t/h
Key Advantage
Self-propelled crawler chassis, wireless remote control, integrated foldable conveyors, and superior screening efficiency on any terrain
Product Introduction
The Tracked Mobile Crushing and Screening Plant is a state-of-the-art, self-propelled material processing station engineered for unparalleled mobility and high-performance classification. Mounted on a robust, heavy-duty crawler chassis, this machine can independently navigate through harsh terrains, steep slopes, and confined job sites without the need for towing trailers.
Designed to process up to 700 tons of material per hour, it perfectly integrates a high-efficiency vibrating screen and foldable discharge conveyors into a single compact unit. Whether used as an independent screening station or combined with tracked jaw/cone crushers, it is the ultimate flexible solution for aggregate production, mining, and recycling operations.
Core Components & Advantages
- Heavy-Duty Tracked Chassis:
Driven by a powerful hydraulic crawler system, the plant offers excellent traction and maneuverability. It can be easily controlled via wireless remote, allowing it to move directly to the material source and significantly reducing hauling costs. - High-Efficiency Screening:
Equipped with an advanced vibrating screen (handling max feed sizes up to 400 mm), it provides aggressive screening action to ensure precise classification and maximum output across various mesh sizes (5–80 mm). - Quick Setup & Foldable Conveyors:
Features hydraulically folding side and tail conveyors. The machine can be transitioned from transport mode to operating mode in just minutes, requiring no concrete foundations or complex site preparation. - Intelligent Control System:
Incorporates an advanced PLC control panel with real-time monitoring and one-button start/stop functions, making the operation incredibly user-friendly and safe. - Eco-Friendly & Low Maintenance:
Built with premium, wear-resistant components to withstand harsh environments. The optimized power system ensures low fuel consumption and minimal noise, meeting strict environmental standards for urban projects.
Typical Applications
This highly versatile tracked plant is ideal for demanding applications:
- Quarrying & Mining: On-site classifying of crushed stones, ores, and coal, keeping up with the moving extraction face.
- Construction Waste Recycling: Effectively screening demolition debris, concrete, and asphalt directly at urban job sites.
- Topsoil & Landscaping: Processing topsoil, compost, and sand with high precision.
Technical Specifications
| Model | Screen Configuration | Max. Feed Size (mm) | Screen Mesh Size (mm) | Capacity (t/h) | Transport Dimensions (mm) |
|---|---|---|---|---|---|
| S5X18L | 5X1860 | 400 | 5–80 | 75–600 | 17700 × 3200 × 3700 |
| S5X21L | 5X2160 | 400 | 5–80 | 85–700 | 17700 × 3500 × 3700 |
Looking for a highly mobile and efficient screening solution? Please contact us today for professional equipment configuration and a free quote!
