Mobile Cone Crusher

Product Introduction

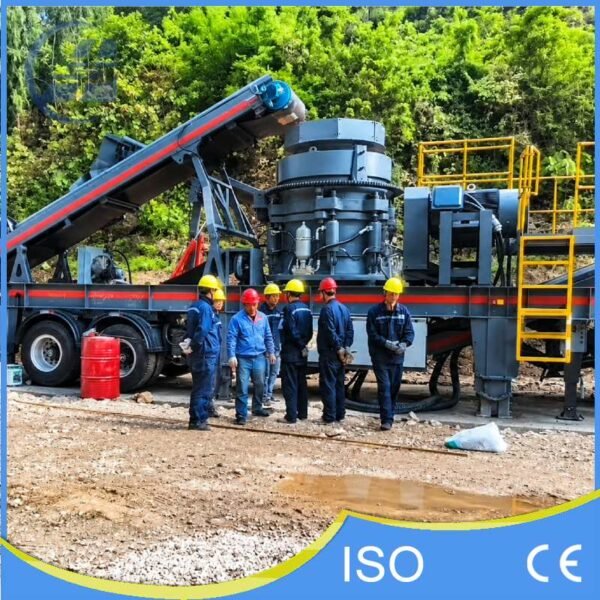

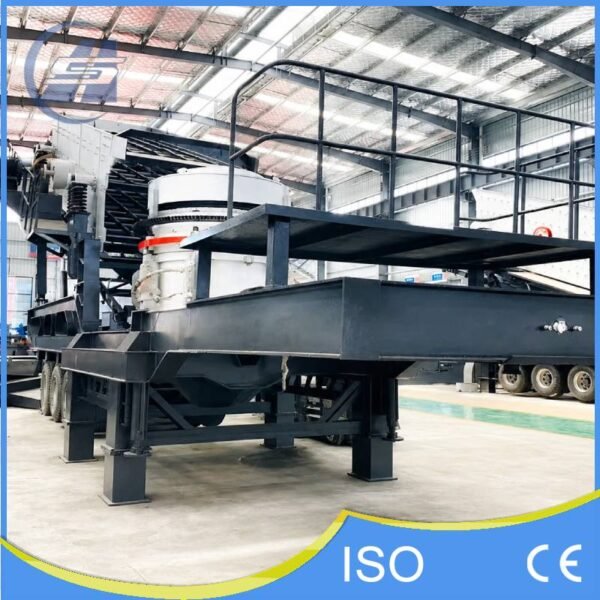

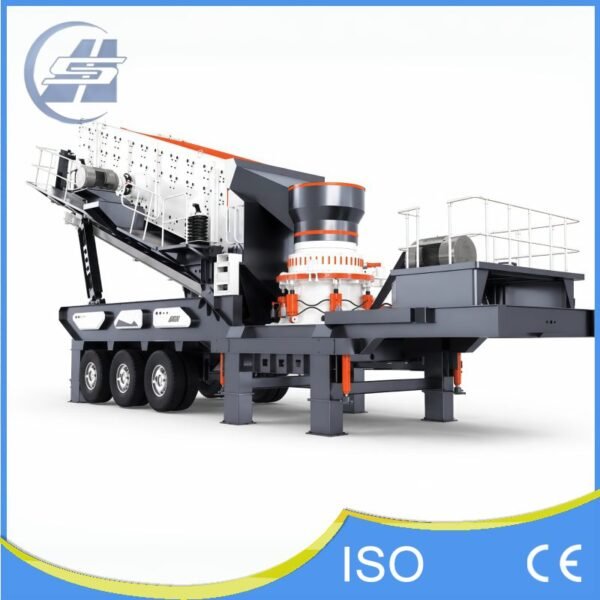

The Mobile Cone Crusher is a highly efficient, portable secondary and tertiary crushing station designed for processing medium to hard materials. Built on a robust, multi-axle wheeled chassis, this plant combines a high-performance cone crusher with an inclined vibrating screen into a single, compact unit. This eliminates the need for complex site preparation and allows for rapid deployment directly at the extraction site.

Offering a comprehensive range of models, the plant can achieve production capacities from 59 to 810 tons per hour depending on the exact configuration. While primarily featuring various series of advanced cone crushers (such as the CS, SHQ, SH, and SHP models), the versatile chassis can also accommodate PF impact crushers or operate as a standalone screening station, making it the ultimate flexible solution for aggregate production and mining operations.

Core Components & Advantages

Integrated Crushing & Screening: By mounting both the primary crusher and a 3YZK series vibrating screen on the same chassis, the plant creates an efficient closed-circuit system that ensures strict control over final aggregate sizes.
Exceptional Mobility: The heavy-duty wheeled chassis allows the plant to be easily transported to various locations. It can navigate highways and rugged job sites effortlessly, significantly reducing material transport costs.
Versatile Crusher Options: The series supports a wide array of crushers to meet specific project needs. It handles maximum feed sizes ranging from ≤140 mm up to ≤500 mm.
Quick Setup: The modular design, complete with built-in maintenance platforms and guardrails, means the equipment can transition from transport mode to working mode in a fraction of the time required by stationary plants.
Optimized Transport Dimensions: Despite its powerful capacity, the plant maintains transport-friendly dimensions, with lengths starting from 10500 mm and heights up to 4600 mm.

Typical Applications

The Mobile Cone Crusher is widely utilized across heavy industries:

Aggregate Production: Secondary and tertiary crushing of hard rocks like granite, basalt, and river pebbles.
Mining Industry: Efficiently processing metallic ores (iron, copper, gold) to prepare them for downstream grinding.
Construction & Recycling: Flexible, on-the-go material classification and crushing for highway, railway, and urban infrastructure projects.

Technical Specifications

Model	Screen Model	Crusher Model	Max Feed Size (mm)	Capacity (t/h)	Overall Dimensions (L×W×H) (mm)
S-CS75	3YZK1848	CS75	≤160	59–163	12600 × 2800 × 4400
S-CS110	3YZK1860	CS110	≤178	100–200	13800 × 3000 × 4400
S-CS160	3YZK2160	CS160	≤188	132–253	13800 × 3000 × 4400
S-CS220	3YZK2160	CS220	≤230	215–330	14500 × 3000 × 4500
S-HQ300	3YZK1848	SHQ300	≤160	65–168	12600 × 2800 × 4400
S-HQ400	3YZK1860	SHQ400	≤230	105–205	13800 × 3000 × 4400
S-HQ500	3YZK2160	SHQ500	≤240	180–290	14500 × 3000 × 4600
S-H420	3YZK1848	SH420	≤240	85–170	12600 × 2900 × 4400
S-H430	3YZK1860	SH430	≤360	120–345	13800 × 3000 × 4500
S-H440	3YZK2160	SH450	≤450	255–605	14800 × 3200 × 4600
S-HP100	3YZK1860	SHP100	≤140	75–140	13800 × 2900 × 4300
S-HP200	3YZK2160	SHP200	≤185	145–250	14200 × 3000 × 4500
S-HP300	3YZK2160	SHP300	≤230	220–440	16500 × 3200 × 4600
S-PF1214	3YZK1860	PF1214 Impact Crusher	≤300	100–200	14500 × 2900 × 4500
S-PF1315	3YZK2160	PF1315 Impact Crusher	≤350	130–280	15200 × 3000 × 4500
S-PF1320	3YZK2460	PF1320 Impact Crusher	≤500	180–400	15200 × 3000 × 4500
S-S1860	3YZK1860	Vibrating Screen	≤400	65–586	10500 × 2700 × 4200
S-S2160	3YZK2160	Vibrating Screen	≤400	81–720	10500 × 3000 × 4500
S-S2460	3YZK2460	Vibrating Screen	≤400	100–810	10500 × 3200 × 4500
