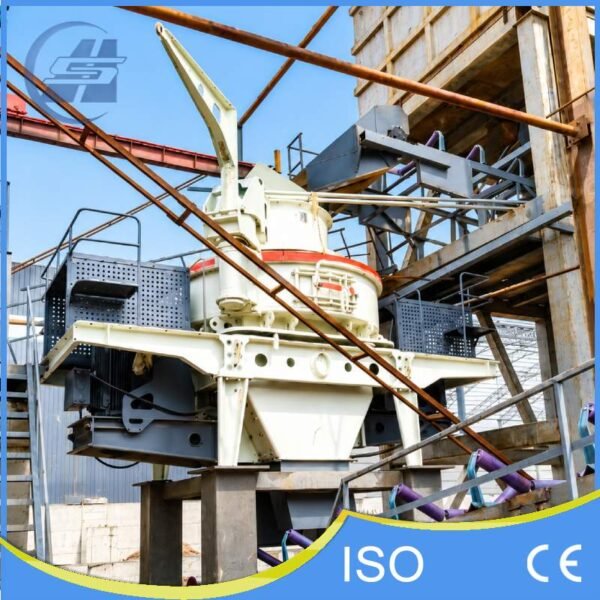

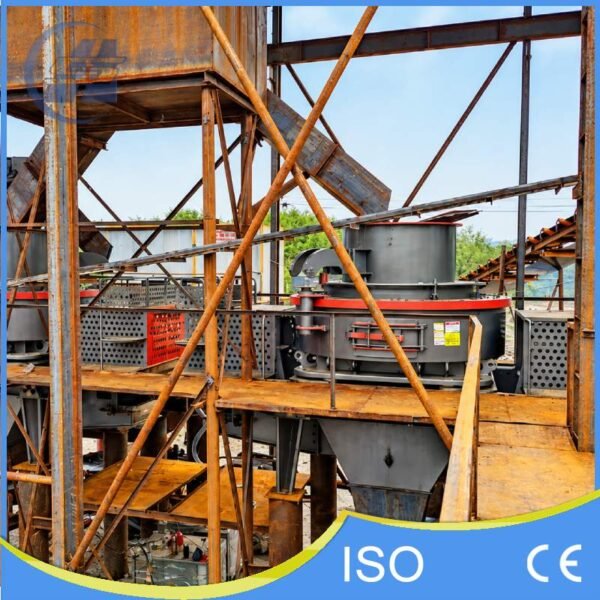

VSI Sand Making Machine

Product Introduction

The VSI Sand Making Machine (Vertical Shaft Impact Crusher) is a highly efficient piece of equipment designed specifically for fine crushing and coarse grinding of various hard and brittle materials. It is the core machine in modern manufactured sand production lines and aggregate shaping processes, widely used to produce premium construction sand that meets stringent high-strength concrete requirements.

With a versatile production capacity ranging from 60 to 520 tons per hour, the VSI series offers dual feeding modes (Center & Cascade Feeding or Full Center Feeding). By utilizing the advanced “rock-on-rock” crushing principle, this machine not only crushes the material efficiently but also significantly improves the particle shape, ensuring the final product has an excellent, uniform cubic structure with minimal flakiness.

Core Components & Advantages

1. Dual Feeding Modes:
   The machine allows operators to easily switch between “Full Center Feeding” (for maximum shaping) and “Center & Cascade Feeding” (for higher throughput and crushing efficiency), providing incredible flexibility for different production goals.
2. Superior Particle Shape:
   The high-speed impact and friction between the rocks inside the crushing chamber strip away sharp edges and tension cracks, resulting in high-quality, well-graded cubic aggregates that are ideal for high-grade commercial concrete and asphalt.
3. Powerful Dual Motor Drive:
   Equipped with a robust dual motor system (as seen in the equipment design), providing balanced and highly stable power to the rotor. This ensures high-speed rotation (up to 1890 rpm) and continuous operation under heavy loads.
4. Convenient Hydraulic Maintenance:

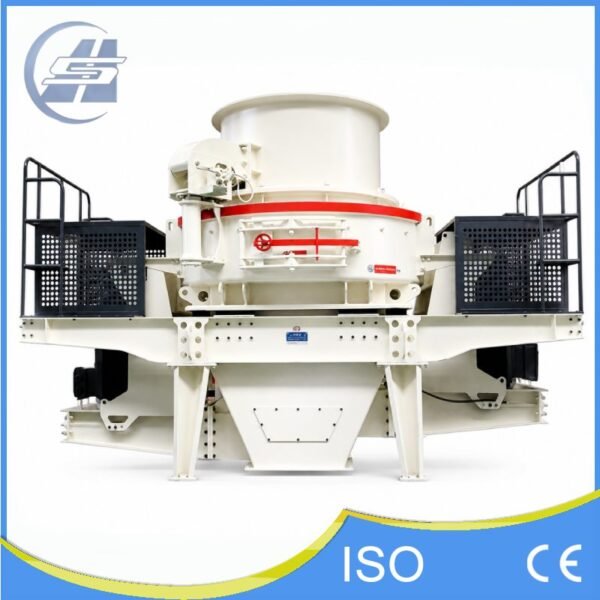

   Features a user-friendly hydraulic cover opening device (highlighted by the red manual adjustment mechanism on the casing). This allows operators to easily and safely open the upper observation door to inspect the rotor and replace wear parts, drastically reducing maintenance downtime.
5. Low Wear Costs:
   The optimal crushing cavity design ensures that materials impact each other rather than the machine’s metal liners, significantly extending the service life of internal components and lowering operational costs.

Typical Applications

The VSI Sand Making Machine is the preferred choice for high-standard material processing:

• Manufactured Sand Production: Crushing river pebbles, limestone, granite, and basalt into premium artificial sand.
• Aggregate Shaping: Improving the particle shape of crushed stones for highways, high-speed railways, bridges, and airport runways.
• Industrial Minerals: Fine crushing of glass raw materials, quartz sand, and other highly abrasive materials.

Technical Specifications

Looking to produce premium manufactured sand with superior cubic shapes? Please contact us today for professional equipment configuration and a free quote!
