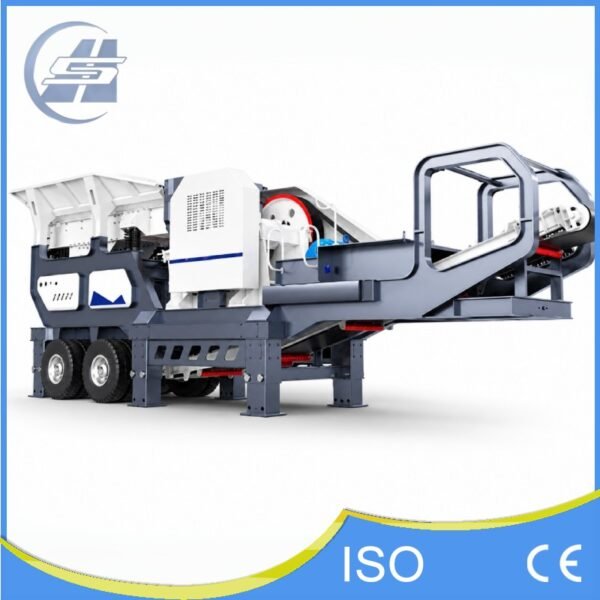

Wheel Mobile Crushing Plant

The ShangHe Wheel Mobile Crushing Plant is a highly integrated primary crushing station designed for rapid deployment. Mounted on a robust wheeled chassis, it combines high-performance feeding and crushing equipment to deliver efficient on-site material processing for mining and construction projects.

Brand

ShangHe

Station Category

Primary Crushing Mobile Station

Available Models

E69, E750, C96, C106, C116, L150, L250, L350

Core Equipment

ZSW Series Feeders integrated with PE/C/SC/LF Series Crushers

Key Advantage

Highly mobile wheeled chassis, quick on-site setup, integrated modular design, and easy transportation

Product Introduction

The Wheel Mobile Crushing Plant is a cutting-edge, highly integrated portable crushing solution designed to eliminate the obstacles of complex site infrastructure. Built on a heavy-duty wheeled chassis, this primary crushing mobile station can be easily towed by a semi-truck to almost any job site, allowing you to start processing materials immediately upon arrival.

By integrating the vibrating feeder, primary crusher, and discharge belt conveyor onto a single robust trailer frame, it drastically reduces transportation costs and setup times. Whether you are dealing with quarry rocks, mining ores, or construction and demolition waste, this mobile plant offers unmatched flexibility and efficiency compared to traditional stationary setups.

Core Components & Advantages

Highly Integrated Design:
The plant seamlessly combines a ZSW series vibrating feeder with a powerful primary crusher (such as the PE series jaw crusher) and a folded belt conveyor. This all-in-one design saves site space and eliminates the need for pouring concrete foundations.
Excellent Mobility:
Equipped with a sturdy, multi-axle wheeled chassis, it can navigate highways and rugged terrain alike. It allows for quick transitions between different working areas, making it ideal for short-term projects or sites requiring frequent relocation.
High-Performance Crushing:
Fitted with premium primary crushers (including PE, C, SC, and LF series), it effortlessly handles large, hard rocks and delivers a stable, high-capacity output for downstream secondary and tertiary crushing stages.
Quick Setup & Easy Operation:
The modular configuration means the equipment is virtually ready to run once parked. It features an integrated electrical control system for streamlined, user-friendly operation and real-time monitoring.
Cost-Effective Transportation:
With optimized transport dimensions (e.g., the E69 model measures 12150 × 2600 × 3950 mm), the plant complies with standard road transport regulations, keeping logistics simple and economical.

Typical Applications

The Wheel Mobile Crushing Plant is highly versatile and widely deployed in:

Quarrying & Mining: Primary crushing of granite, basalt, limestone, and metallic ores directly at the extraction face.
Construction Waste Recycling: On-site crushing of demolition debris, concrete blocks, and asphalt for immediate reuse.
Infrastructure Projects: Providing flexible, on-the-go aggregate production for highways, railways, and municipal road constructions.

Technical Specifications

Type / Station Category	Model	Feeding Equipment	Crushing Equipment	Transport Dimensions (L×W×H mm)
Primary Crushing Mobile Station	E69	ZSW9638	PE600×900	12150 × 2600 × 3950
	E750	ZSW1142	PE750×1060	13270 × 2850 × 4200
	C96	ZSW9638	C96	12150 × 2600 × 3950
	C106	ZSW1142	C106	13200 × 3000 × 4400
	C116	ZSW1349	SC116	14600 × 3000 × 4500
	L150	ZSW9638	LF150	11000 × 2000 × 4000
	L250	ZSW1142	LF250	13500 × 2600 × 4300
	L350	ZSW1349	LF350	16500 × 3100 × 4500
