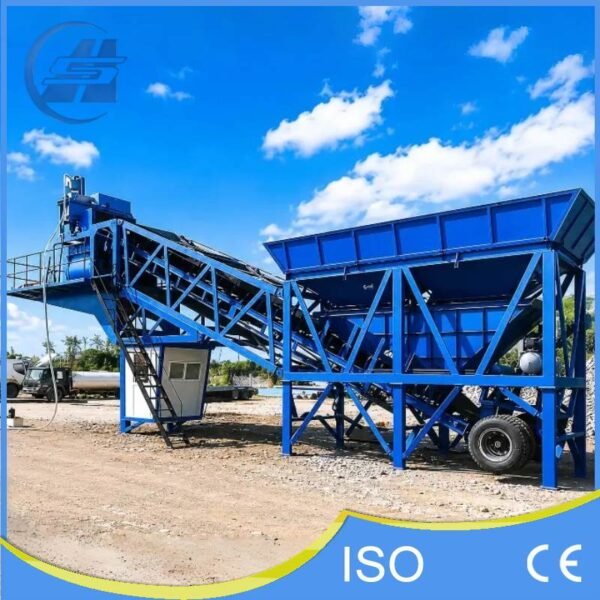

YHZS35 Mobile Concrete Batching Plant

Product Introduction

The YHZS35 Mobile Concrete Batching Plant is the ultimate solution for contractors seeking a balance between higher concrete production volume and exceptional mobility. Engineered with a theoretical output of 35 cubic meters per hour, this plant provides the heavy-duty mixing capabilities of a stationary facility while remaining entirely portable.

Unlike stationary setups or frame-type models, the YHZS35 is designed as a true trailer-type plant. The aggregate batcher, weighing systems, JS750 twin-shaft mixer, and control cabin are seamlessly integrated onto a single wheeled chassis. This allows the entire unit to be towed by a tractor head directly to the job site, eliminating the need for complex foundation works and drastically reducing setup time.

Core Components & Advantages

1. Upgraded JS750 Twin-Shaft Mixer:
   Equipped with the robust JS750 compulsory mixer, the plant delivers 0.75m³ of highly uniform concrete per batch. The heavy-duty mixing action ensures fast and thorough blending, maintaining commercial-grade quality even in demanding environments.
2. True Trailer Mobility:
   The heavy-duty steel chassis features built-in axles, pneumatic tires, and a standard traction pin. It is engineered for safe and smooth highway towing, allowing for frequent, cost-effective relocations as your project advances.
3. Foundation-Free Rapid Setup:
   Time is money on a construction site. The YHZS35 is pre-wired and pre-assembled. Simply park it on leveled, compacted ground, deploy the hydraulic or mechanical support legs, connect the utilities, and you can start batching concrete within days—not weeks.
4. Independent High-Precision Weighing:
   Features a closed-loop electronic weighing system with dedicated load cells for aggregates, cement, water, and liquid admixtures. This ensures absolute precision and strict adherence to structural concrete mix designs.
5. Fully Automated Smart Control:
   The integrated operator cabin houses a PLC-based computer control system. It provides real-time monitoring of the batching process, formula management, and automatic fault diagnostics, ensuring seamless operation with minimal manual intervention.

Typical Applications

With its 35m³/h capacity and trailer-mounted design, the YHZS35 is perfectly suited for:

• Highway & Railway Construction: Moving seamlessly alongside the construction route to supply fresh concrete exactly where it’s needed.
• Medium-Sized Temporary Projects: Ideal for mid-scale bridge construction, canal lining, and municipal utility works.
• Remote Concrete Supply: Providing a reliable, on-site concrete source for rural developments far from commercial ready-mix plants.

Technical Specifications

Customized configurations are available according to project requirements.

Need a mobile concrete plant that perfectly balances capacity and flexibility? Please contact us today for detailed technical drawings and factory-direct pricing!
