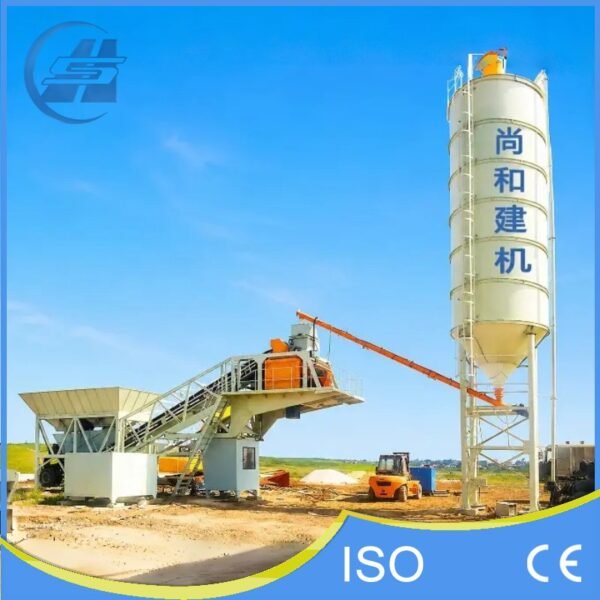

YHZS25 Mobile Concrete Batching Plant

Product Introduction

The YHZS25 Mobile Concrete Batching Plant is an entry-level, fully integrated portable concrete production facility. Designed with a theoretical output of 25 cubic meters per hour, it combines the powerful mixing performance of a stationary plant with the ultimate flexibility of a trailer-mounted system.

Unlike traditional plants that require expensive and time-consuming concrete foundations, the YHZS25 has all its core components—aggregate batcher, weighing scales, JS500 mixer, and control room—compactly mounted on a single mobile chassis. It can be easily towed by a tractor head to any job site, making it the perfect solution for short-term projects and frequent relocations.

Core Components & Advantages

1. Integrated Trailer Chassis:
   The robust steel chassis comes equipped with axles, tires, and a standard traction pin. It allows the entire plant to be legally and safely towed on standard roads at speeds up to 40-50 km/h, dramatically reducing relocation costs.
2. High-Performance JS500 Mixer:
   Despite its mobility, the plant does not compromise on concrete quality. It utilizes the heavy-duty JS500 twin-shaft compulsory mixer (0.5m³ per batch), ensuring rapid and homogeneous mixing for all types of concrete grades.
3. Foundation-Free & Quick Setup:
   Pre-wired and pre-assembled at the factory. Upon arriving at the job site, the plant only requires a flat, compacted ground surface. Unfold the components, connect the power and water supply, and the plant can be fully operational within a few days.
4. Dynamic & Accurate Weighing:
   Features high-precision electronic load cells integrated directly into the chassis. Cement, water, aggregates, and liquid admixtures are weighed independently and accurately, guaranteeing strict compliance with structural concrete formulas.
5. Centralized Smart Control:
   The plant includes a built-in, climate-controlled operator cabin equipped with a PLC-based automated control system. It offers a user-friendly interface for recipe management, real-time monitoring, and seamless operation.

Typical Applications

The highly portable nature of the YHZS25 makes it the ideal choice for:

• Temporary Infrastructure Projects: Short-term road paving, bridge repairs, and canal lining where the equipment must move along with the construction progress.
• Remote & Rural Construction: Ideal for projects located in areas far from commercial ready-mix concrete suppliers.
• Rental Businesses: A highly profitable asset for equipment rental companies due to its easy transportability and quick assembly time.

Technical Specifications

Customized configurations are available according to project requirements.
