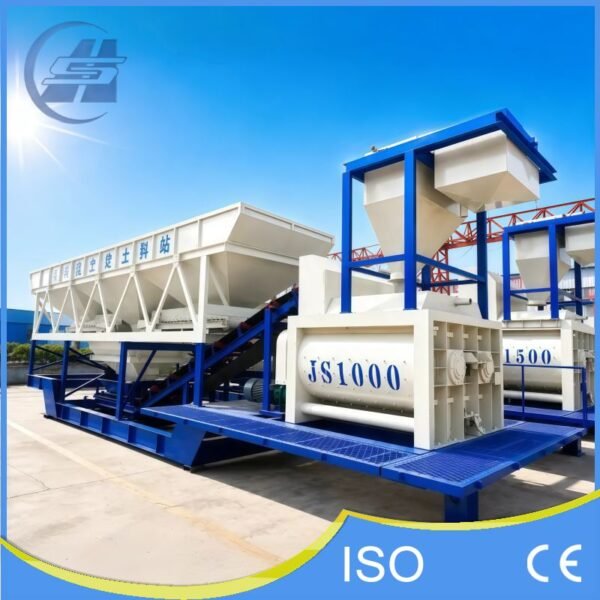

YHZS50F Mobile Concrete Batching Plant

The ShangHe YHZS50F Mobile Concrete Batching Plant delivers a theoretical capacity of 50 m³/h. Featuring a JS1000 twin-shaft mixer and a trailer-mounted design, it ensures rapid deployment and high-quality concrete production. Equipped with a fully automatic PLC system, it is the ideal portable solution for construction projects.

Brand

ShangHe

Theoretical Capacity

50 m³/h

Mixer Model

JS1000 Twin Shaft Mixer (1000 L discharge)

Mobility Type

Trailer Mounted

Control System

Fully Automatic PLC / Manual Overrides

Key Advantage

Highly integrated trailer-mounted design, quick on-site setup, precise aggregate batching with PLD1600, and highly efficient JS1000 twin-shaft mixing performance

Product Introduction

The YHZS50F Mobile Concrete Batching Plant is a highly integrated, portable concrete production station designed for maximum efficiency and mobility. Built on a robust trailer-mounted chassis, this plant combines all essential mixing components into a single, easily transportable unit. With a theoretical production capacity of 50 m³/h, it serves as an excellent solution for medium-sized construction projects, temporary work sites, and rural infrastructure developments.

Core Components & Advantages

High Mobility & Quick Setup:
The entire system is trailer-mounted. This wheeled chassis design allows for easy towing between job sites and significantly reduces installation time and foundation costs.
Exceptional Mixing Performance:
The plant is equipped with a high-performance JS1000 Twin Shaft Mixer that provides a 1000 L discharge per batch. This ensures fast, thorough, and uniform mixing of concrete.
Precise Aggregate Batching:
It utilizes a PLD1600 Aggregate Batching Machine, which is available in an optional 2-4 bins configuration to accurately weigh and distribute different materials. Materials are fed into the mixer via a reliable belt conveyor.
Intelligent Operation:
The plant features a fully automatic PLC control system with manual overrides, guaranteeing precise operational control, real-time monitoring, and high reliability with minimal labor.
Seamless Truck Integration:
The discharge height is adjustable and commonly set at 3.8 meters. This is the standard height required for seamless and clean loading directly into standard concrete mixer trucks.

Typical Applications

The YHZS50F Mobile Concrete Batching Plant strikes a perfect balance between capacity and mobility, suitable for:

Medium-Scale Infrastructure: Delivering a stable and continuous concrete supply for highway construction, bridge foundations, and tunnel projects.
Commercial Construction: Providing immediate on-site concrete for medium-sized commercial buildings and industrial parks.
Mobile Concrete Supply: Acting as a flexible, temporary commercial concrete batching station for expanding regional developments.

Technical Specifications

Item	Specification
Model	YHZS50F
Theoretical Capacity	50 m³/h
Mixer Model	JS1000 Twin Shaft Mixer
Mixer Discharge Capacity	1000 L
Aggregate Batching Machine	PLD1600
Aggregate Bin Quantity	2-4 Bins Optional
Feeding Method	Belt Conveyor
Discharge Height	Adjustable (commonly 3.8m)
Control System	Fully Automatic PLC / Manual Overrides
Power Supply	Customizable based on region
Mobility Type	Trailer Mounted
Note: Customized configurations are available according to project requirements.
