Mobile Impact Crusher

The ShangHe Mobile Impact Crusher delivers highly efficient fine crushing and aggregate shaping with a flexible capacity ranging from 120 to 640 t/h. Integrating a vertical shaft impact crusher and a vibrating screen on a wheeled chassis, it provides a complete, portable solution for premium manufactured sand production.

Brand

ShangHe

Max Feed Size

35 mm – 50 mm

Capacity

120 – 640 t/h

Crusher Type

VSI and 5X Series Vertical Shaft Impact Crushers

Screening Equipment

3YZK Series Vibrating Screen

Key Advantage

Exceptional cubic particle shaping, integrated screening process, rapid on-site setup, and highly mobile wheeled chassis

Product Introduction

The Mobile Impact Crusher (specifically featuring a Vertical Shaft Impact or VSI crusher) is a highly integrated, portable sand-making and shaping plant. Engineered to process feed sizes up to 50 mm, this mobile station is designed to overcome the limitations of stationary plants by offering rapid deployment directly to the material source.

With an impressive production capacity ranging from 120 to 640 tons per hour depending on the model, it serves as the ultimate equipment for high-quality manufactured sand. The machine utilizes high-velocity impact crushing to ensure that the final aggregate possesses a superior, uniform cubic shape, which is essential for high-grade commercial concrete.

Core Components & Advantages

Integrated VSI Crusher:

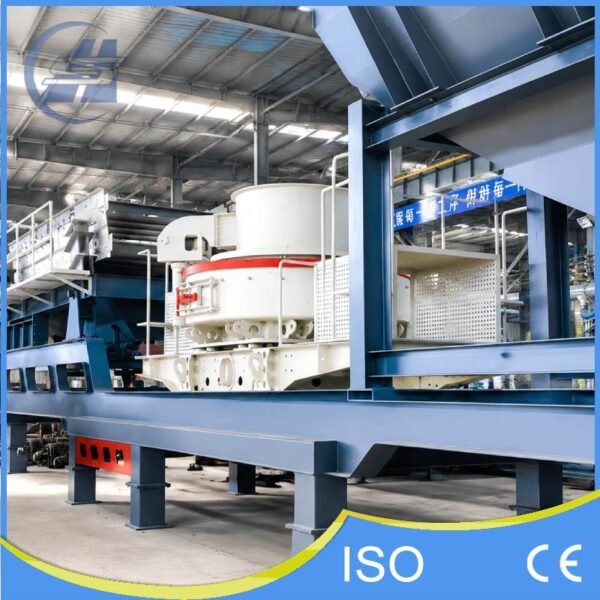

The station is equipped with industry-leading VSI or 5X series impact crushers. These crushers utilize a “rock-on-rock” or “rock-on-iron” crushing principle, which significantly improves the fine crushing efficiency and particle shaping capabilities.
Built-in Screening System:

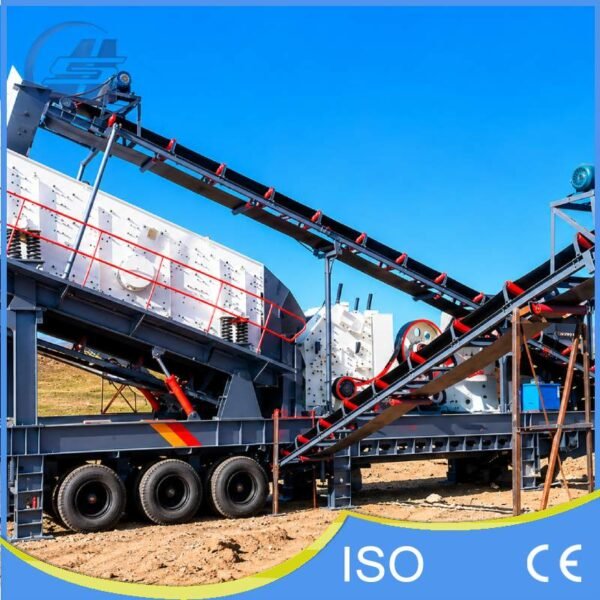

Incorporates the 3YZK series vibrating screen directly onto the chassis. This allows the plant to simultaneously crush and classify the materials, creating a closed-circuit system that ensures strict control over the final product gradation.
Heavy-Duty Wheeled Chassis:

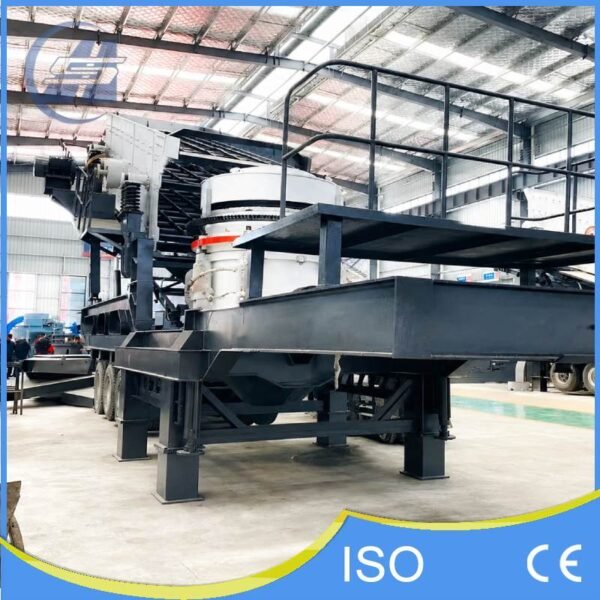

The entire crushing and screening system is mounted on a rugged, multi-axle wheeled chassis. It offers excellent mobility on highways and rough terrain, allowing for quick transitions between project sites without the need for concrete foundations.
Spacious Maintenance Platforms:
Designed with built-in steel walkways and guardrails around the crusher unit. This provides operators with safe, convenient access for routine inspections, maintenance, and wear part replacements.
Cost-Effective Logistics:
The modular, compact design ensures that the transport dimensions comply with standard road regulations (e.g., the S-V7611 model features transport dimensions of 12500 × 2600 × 4300 mm), making relocation highly economical.

Typical Applications

The Mobile VSI Impact Crusher is widely utilized across high-demand sectors:

Manufactured Sand Production: Producing high-quality artificial sand from river pebbles, limestone, granite, and basalt.
Aggregate Shaping: Improving the particle shape of crushed stones for use in high-speed railways, highways, and airport runways.
Construction Waste Recycling: Fine crushing and shaping of recycled concrete aggregates.

Technical Specifications

Model	Feeding Belt / Screen Model	Crusher Model	Max Feed Size (mm)	Capacity (t/h)	Overall Dimension (mm)
S-V7611	3YZK1548	VSI7611	35	120–180	12500 × 2600 × 4300
S-V8518	3YZK1848	VSI8518	40	200–260	14200 × 3000 × 4500
S-V9526	3YZK1860	VSI9526	45	300–380	14500 × 3000 × 4500
S-V1140	3YZK2160	5X1140	50	450–520	15500 × 3100 × 4500
S-5V7615	3YZK1548	5X7615	35	150–280	12500 × 2600 × 4300
S-5V8522	3YZK1848	5X8522	40	240–380	14200 × 3000 × 4500
S-5V9532	3YZK1860	5X9532	45	350–540	14500 × 3000 × 4500
S-5V1145	3YZK2160	5X1145	50	500–640	15500 × 3100 × 4500
